Female signal socket contact for cable mounting, featuring a straight orientation and crimp termination. Designed for 20-24 AWG wire, this contact offers a 2A current rating and 250V voltage rating. Constructed from bronze with gold plating, it supports a single circuit application. Packaged as 1000 loose pieces, this RoHS compliant component is unshielded.
Voltage Rating250V
Current Rating2A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 66504-9 technical specifications.
General
| Circuit Application | Signal |
| Contact Gender | Female |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Style | Socket |
| Contact Type | Signal |
| Current Rating | 2A |
| Depth | 2.67mm |
| Gender | Female |
| Insulation Diameter | -1.52mm |
| Lead Free | Lead Free |
| Length | 14.1mm |
| Max Current Rating | 2A |
| Mount | Cable |
| Number of Contacts | 1 |
| Number of Ports | 1 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Loose Piece |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | AMPLIMITE HDP-20 |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 250V |
| Wire Gauge (Max) | 20AWG |
| Wire Gauge (Min) | 24AWG |
| Wire/Cable Gauge | 20AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 66504-9 Datasheet
Download the complete datasheet for TE Connectivity 66504-9 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

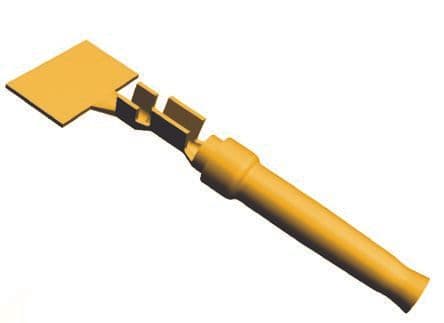

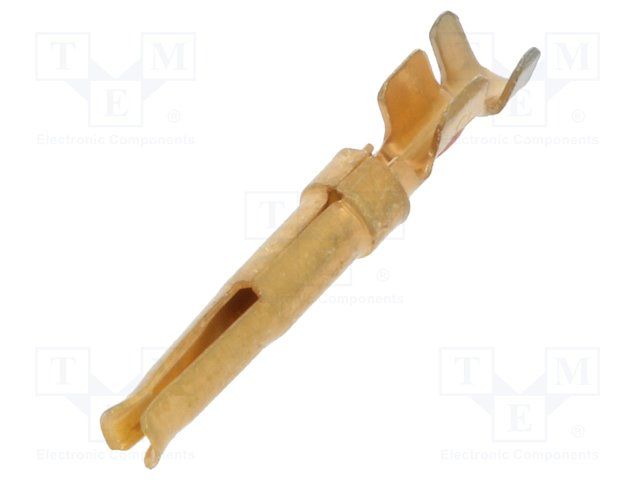

Product Images
