Multimode fiber optic connector featuring a polyphenylsulfone body and beige housing. Designed for buffered fiber with a 0.9mm wire/cable diameter, it terminates via crimp and supports a 125um fiber cladding diameter with a 62.5um core diameter. This straight, free-hanging, cable-mount connector offers 500 mating cycles, 0.3dB insertion loss, and operates within a temperature range of -10°C to 60°C. It is RoHS compliant and ELV compliant.
Package125
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 6754483-1 technical specifications.
General
| Body Material | Polyphenylsulfone |
| Package/Case | 125 |
| Color | Beige |
| ELV | Compliant |
| Fiber Cladding Diameter | 125um |
| Fiber Core Diameter | 62.5um |
| Housing Color | Beige |
| Insertion Loss | 0.3dB |
| Lead Free | Not Applicable |
| Length | 31.5mm |
| Mating Cycles | 500 |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -10°C |
| Mode | Multimode |
| Mount | Free Hanging, Cable |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | LightCrimp Plus |
| Simplex/Duplex | Simplex |
| Termination | Crimp |
| Wire/Cable Diameter | 0.9mm |
| Wire/Cable Type | Buffered Fiber |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 6754483-1 Datasheet
Download the complete datasheet for TE Connectivity 6754483-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

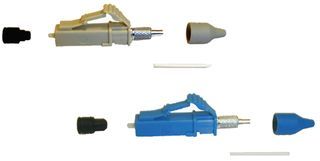

Product Images
