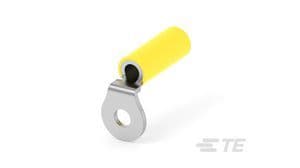

Heavy-duty insulated ring tongue terminal for 10-12 AWG wire. Features copper body and contact material with tin plating. Nylon insulation supports wire up to 6.35mm diameter. Rated for 300V AC, with a stud size of M3.5 (3.68mm diameter). Packaged loose piece, 500 units per package.
Package300
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 696020-1 technical specifications.
General
Body Material
Copper
Body Plating
Tin
Package/Case
300
Color
Yellow
Contact Material
Copper
Contact Plating
Tin
Depth
9.53mm
ELV
Compliant
Government Qualified
No
Heavy Duty
Yes
Insulated Wire Support
Yes
Insulation
Insulated
Insulation Diameter
6.35mm
Insulation Material
Nylon
Lead Free
Not Applicable
Material
Copper
Mount
Free Hanging
Number of Holes
1
Package Quantity
500
Packaging
Loose Piece
Plating
Tin
Radiation Hardening
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
PIDG
Stud Diameter
3.68mm
Stud Size
M3.5
Termination
Circular
Thickness
0.04inch
Tongue Thickness
1.02mm
Voltage Rating (AC)
300V
Wire Gauge (Max)
10AWG
Wire Gauge (Min)
12AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 696020-1 Datasheet
Download the complete datasheet for TE Connectivity 696020-1 to view detailed technical specifications.
