Unfiltered Power Entry Module with 3 positions and 1 port, designed for AC applications. Features 3 contacts made of tin-plated brass, offering a 10A current rating and a maximum voltage rating of 250VAC. This thermoplastic module mounts via panel or flanges and utilizes quick connect termination. Approvals include UL, CSA, and VDE, with RoHS and ELV compliance.
FrequencyN/A
PackageModule
Current10A
Voltage Rating250V
Quick Jump:
Technical Specifications
TE Connectivity 6ESRF-3 technical specifications.
General
| Application(s) | AC |
| Approvals | UL, CSA, VDE |
| Body Material | Thermoplastic |
| Package/Case | Module |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Type | Socket |
| Current | 10A |
| Current Rating | 15A |
| Depth | 35.6mm |
| ELV | Compliant |
| Fuse | No |
| Gender | Receptacle |
| Lead Free | Lead Free |
| Max Operating Temperature | 65°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Panel, Flanges, Socket |
| Number of Contacts | 3 |
| Number of Poles | 2 |
| Number of Ports | 1 |
| Number of Positions | 3 |
| Operating Frequency | N/A |
| Orientation | Straight |
| Package Quantity | 50 |
| Packaging | Bulk |
| Primary Type | POWER |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | SR |
| Termination | Quick Connect |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 6ESRF-3 Datasheet
Download the complete datasheet for TE Connectivity 6ESRF-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

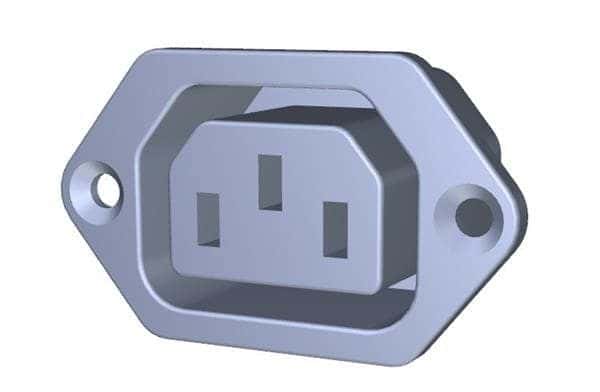

Product Images
