Right angle male header with 4 positions and 2 rows, featuring a 1.27mm lead pitch and 0.05inch pitch. This connector system is designed for cable-to-board applications, with through-hole termination and press-fit mounting capabilities. It offers a 1.5A contact current rating and 100V operating voltage, constructed from polyester and thermoplastic materials with bronze contacts plated in tin. The header includes a board standoff and PCB mounting retention, operating within a temperature range of -40°C to 105°C.
Voltage Rating100V
Current Rating1.5A
MountingThrough Hole, Press-Fit, Cable, Board
Quick Jump:
Technical Specifications
TE Connectivity 7-215570-4 technical specifications.
General
Board Standoff
Yes (With)
Color
Red
Connector System
Cable-to-Board
Contact Current Rating
1.5A
Contact Material
Bronze
Contact Plating
Tin
Contact Post Length
0.125inch
Current Rating
1.5A
Depth
5.1mm
Flammability Rating
UL94 V-0
Gender
Male
Height
0.2inch
Housing Color
Red
Insulation Diameter
0.035inch
Lead Pitch
1.27mm
Length
0.339inch
Material
Polyester, Thermoplastic
Mating Alignment
No (Without)
Mating Connector Lock
No (Without)
Mating Retention
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole, Press-Fit, Cable, Board
Number of Contacts
4
Number of Poles
4
Number of Positions
4
Number of Rows
2
Operating Supply Voltage
100V
Orientation
Right Angle
Package Quantity
250
Packaging
Box
PCB Mount Alignment
No (Without)
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
PCB Thickness
1.6mm
Pitch
0.05inch
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Micro-MaTch
Termination
Through Hole
DC Rated Voltage
100V
Wire/Cable Gauge
28AWG
Wire/Cable Type
Ribbon
Working Voltage
100V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 7-215570-4 Datasheet
Download the complete datasheet for TE Connectivity 7-215570-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

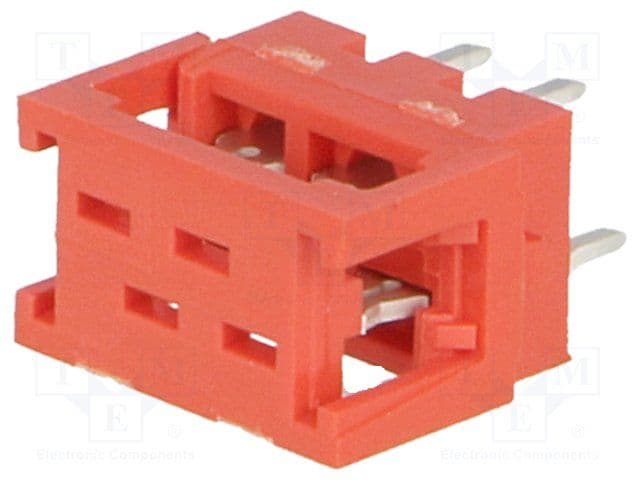

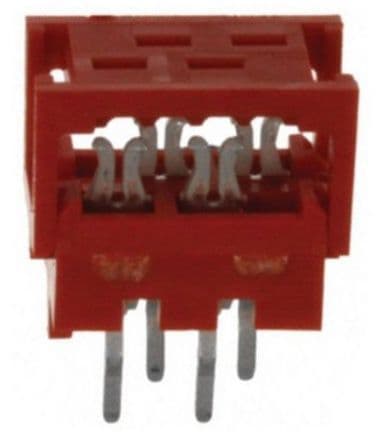

Product Images
