7-5530843-0

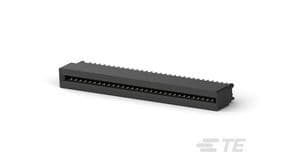

62 Pos 2R 2.54mm Pitch Board-to-Board Header, 3A, 400V

62-position, 2-row female header for board-to-board applications. Features 3A contact current rating, 400V voltage rating, and a 2.54mm pitch. Constructed with gold-plated bronze contacts and a black glass-filled insulation housing. Designed for through-hole mounting with vertical PCB mounting orientation and solder termination. Operates across a -55°C to 85°C temperature range.

Voltage Rating400V

Current Rating3A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 7-5530843-0 technical specifications.

General

Card Thickness	1.78mm
Circuit Application	Power
Color	Black
Connector System	Board-to-Board
Contact Current Rating	3A
Contact Material	Bronze
Contact Plating	Gold, Tin
Contact Retention	No (Without)
Current Rating	3A
Depth	15.49mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Female
Height	0.8inch
Housing Color	Black
Insulation Material	Glass
Lead Free	Lead Free
Length	85.34mm
Mating Alignment	Yes (With)
Mating Retention	No (Without)
Max Operating Temperature	85°C
Min Operating Temperature	-55°C
Max Voltage Rating (AC)	400V
Mount	Through Hole
Number of Contacts	62
Number of Positions	62
Number of Power Positions	62
Number of Rows	2
Operating Supply Voltage	400V
Orientation	Straight
Package Quantity	108
Packaging	Box
PCB Mount Alignment	No (Without)
PCB Mount Retention	With
PCB Mounting Orientation	Vertical
Pitch	2.54mm
Plating	Gold
Plating Thickness	380nm
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	4.85mm
Selectively Loaded	No (Without)
Series	Standard Edge II
Termination	Solder
Underplate Material	Nickel
Voltage Rating	400V
Width	9.35mm
