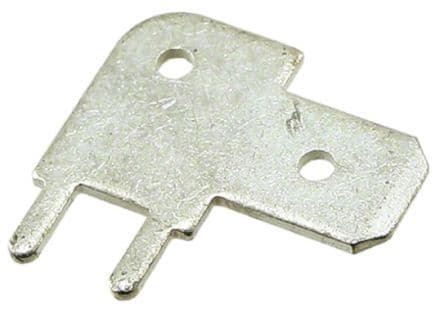

TE Connectivity 726387-2 technical specifications.
| Contact Material | Brass, COPPER ZINC ALLOY |
| Contact Plating | Tin, Copper |
| ELV | Compliant |
| Gender | Male |
| Insulation | Non-Insulated |
| Lead Free | Lead Free |
| Length | 16mm |
| Material | Brass |
| Mating Tab Width | 0.25inch |
| Mount | Through Hole |
| Orientation | Right Angle |
| Package Quantity | 5000 |
| Packaging | Box |
| Plating | Tin |
| Plating Thickness | 4.5um |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Faston |
| Tab Thickness | 0.8mm |
| Tab Width | 6.3mm |
| Terminal Material | Brass |
| Termination | Standard |
| RoHS | Compliant |
