64-position, 3-row backplane connector with 2.54mm pitch, designed for wire-to-board applications. Features right-angle orientation and IDC termination for 30AWG ribbon cable. Constructed with bronze contacts plated in gold, housed in a black, UL94 V-0 rated glass-filled insulator. Rated for 1.5A current and operates across a -55°C to 125°C temperature range. Compliant with UL, CSA, IEC, and RoHS standards.
Current Rating1.5A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 746603-4 technical specifications.
General
| Approvals | UL, CSA, IEC |
| Color | Black |
| Connector System | Wire-to-Board |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 1.5A |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Height | 0.741inch |
| Insulation Material | Glass |
| Lead Free | Lead Free |
| Make First / Break Last | No |
| Mating Alignment | Yes (With) |
| Mating Retention | Yes (With) |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable |
| Number of Columns | 32 |
| Number of Contacts | 64 |
| Number of Positions | 64 |
| Number of Positions Loaded | 64 |
| Number of Rows | 3 |
| Orientation | Right Angle |
| Package Quantity | 210 |
| Packaging | Box |
| PCB Mount Retention | Without |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Eurocard |
| Shell Size | C |
| Shielding | Unshielded |
| Termination | IDC |
| Wire/Cable Gauge | 30AWG |
| Wire/Cable Type | Ribbon |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 746603-4 Datasheet
Download the complete datasheet for TE Connectivity 746603-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

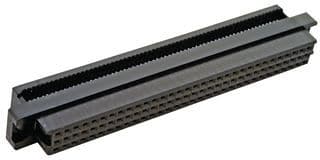

Product Images
