Standard D-Subminiature Connector, 15 positions, 2 rows, female gender, straight orientation, through-hole mount. Features bronze contacts with gold and tin plating, round contact shape, and signal contact type. Housing is black polyester with a steel shell, offering shielded connectivity. Rated for 250V AC/DC, with a maximum operating temperature of 105°C and a flammability rating of UL94 V-0.
Voltage Rating125V
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 747299-2 technical specifications.
General
Approvals
UL
Body Plating
Copper
Color
Black
Contact Material
Bronze
Contact Plating
Gold, Tin, Lead
Contact Post Length
0.125inch
Contact Shape
Round
Contact Type
Signal
Depth
12.55mm
Dielectric Material
Polyester
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Height
12.16mm
Housing Color
Black
Lead Free
Contains Lead
Length
39.12mm
Mating Connector Lock
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Supply Voltage (AC)
250V
Max Supply Voltage (DC)
250V
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250.25kV
Mount
Through Hole
Number of Contacts
15
Number of Ports
1
Number of Positions
15
Number of Rows
2
Orientation
Straight
Package Quantity
13
Packaging
Rail/Tube
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
PCB Thickness
2.36mm
Pitch
0.108inch
Plating
Tin
Preloaded
Yes
Radiation Hardening
No
RoHS Compliant
No
Sealable
No (Without)
Series
AMPLIMITE HD-20
Shell Material
Steel
Shell Size
2
Shielding
Shielded
Termination
Solder
Voltage Rating
125V
Compliance
RoHS
Not CompliantNo
Datasheet
TE Connectivity 747299-2 Datasheet
Download the complete datasheet for TE Connectivity 747299-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

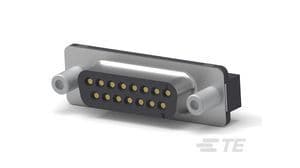

Product Images
