Technical Specifications
TE Connectivity 748569-1 technical specifications.
General
| Color | Black |
| Contact Material | Steel |
| Contact Plating | Copper, Tin |
| Contact Type | Signal |
| Dielectric Material | Nylon |
| Gender | Female |
| Lead Free | Contains Lead |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Free Hanging |
| Number of Contacts | 78 |
| Number of Positions | 78 |
| Number of Rows | 4 |
| Orientation | Straight |
| Package Quantity | 450 |
| Packaging | Bulk |
| Plating | Copper, Tin |
| RoHS Compliant | No |
| Series | AMPLIMITE HDP-22 |
| Shell Material | Steel |
| Termination | Through Hole |
Compliance
| RoHS | Not Compliant |
Datasheet
TE Connectivity 748569-1 Datasheet
Download the complete datasheet for TE Connectivity 748569-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

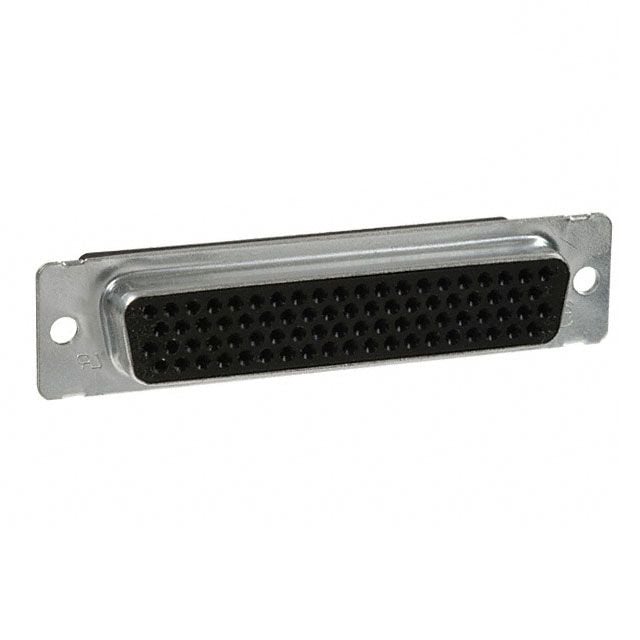

Product Images
