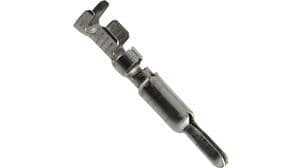

This male, straight, unshielded power contact is designed for wire-to-wire connector systems, supporting discrete wire types with a gauge range of 20-14 AWG. It features a brass contact material with tin plating, rated for 7A at the contact level and 19A overall, with a maximum voltage rating of 600V AC. Operating within a temperature range of -55°C to 120°C, this component is UL and VDE tested, lead-free, RoHS compliant, and ELV compliant. The contact is intended for cable mounting and is supplied in tape and reel packaging.
Voltage Rating600V
Current Rating19A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 770007-1 technical specifications.
General
| Approvals | UL |
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Contact Current Rating | 7A |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Type | Power |
| Current Rating | 19A |
| Depth | 5.97mm |
| ELV | Compliant |
| Gender | Male |
| Height | 5.97mm |
| Insulation Diameter | 0.13inch |
| Lead Free | Lead Free |
| Length | 19.81mm |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 600V |
| Mount | Cable |
| Number of Ports | 1 |
| Orientation | Straight |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | Universal MATE-N-LOK II |
| Shielding | Unshielded |
| Termination | Crimp |
| VDE Tested | Yes |
| Voltage Rating | 600V |
| Wire Gauge (Max) | 14AWG |
| Wire Gauge (Min) | 20AWG |
| Wire/Cable Gauge | 14AWG |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
