12-position, straight, cable mount wire housing with a 6.35mm pitch. This male connector system supports wire-to-wire connections, featuring a 31A current rating and 600V voltage rating. Constructed from white nylon, it offers a temperature range of -55°C to 120°C and meets UL94 V-0 flammability standards. Approvals include CSA and VDE tested, with RoHS and ELV compliance.
Voltage Rating600V
Current Rating31A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 770022-1 technical specifications.
General
| Approvals | CSA |
| Body/Shell Style | PLUG |
| Color | White |
| Connector System | Wire-to-Wire |
| Contact Gender | Male |
| Contact Retention | No (Without) |
| Contact Type | Male or Female |
| Current Rating | 31A |
| Depth | 22.99mm |
| DIN Conformance | No |
| ELV | Compliant |
| Empty Shell | No |
| Filter Feature | No |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 27.4mm |
| Housing Color | White |
| IEC Conformance | No |
| Lead Free | Lead Free |
| Length | 26.67mm |
| Manufacturer Series | 770022 |
| Material | Nylon |
| Max Operating Temperature | 120°C |
| MIL Conformance | No |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 600V |
| Mixed Contacts | No |
| Mount | Free Hanging, Cable |
| Number of Circuits | 12 |
| Number of Contacts | 12 |
| Number of Positions | 12 |
| Number of Rows | 3 |
| Option | General Purpose |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 6.35mm |
| RoHS Compliant | Yes |
| Row Spacing | 0.25mm |
| Sealable | No (Without) |
| Series | Universal MATE-N-LOK II |
| Shell Material | Polyamide |
| Termination | Crimp |
| VDE Tested | Yes |
| Voltage Rating | 600V |
| Width | 22.99mm |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 10AWG |
| Wire/Cable Gauge | 30AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 770022-1 Datasheet
Download the complete datasheet for TE Connectivity 770022-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

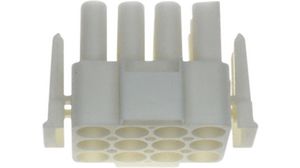

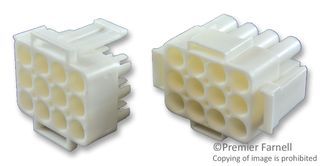

Product Images
