Two-position, straight, male wire-to-wire connector housing with a 6.35mm pitch. This white, free-hanging cable mount housing accepts male or female crimp contacts and operates within a -55°C to 120°C temperature range, rated for 600V. It features a UL94 V-0 flammability rating and is RoHS compliant.
Voltage Rating600V
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 770032-1 technical specifications.
General
| Approvals | CSA |
| Color | White |
| Connector System | Wire-to-Wire |
| Contact Gender | Male |
| Contact Retention | No (Without) |
| Contact Type | Male or Female |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | White |
| Lead Free | Not Applicable |
| Length | 0.55inch |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 600V |
| Mount | Free Hanging |
| Number of Circuits | 2 |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 6.35mm |
| Primary Type | CONNECTOR |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Universal MATE-N-LOK II |
| Termination | Crimp |
| VDE Tested | Yes |
| Voltage Rating | 600V |
| Width | 0.3inch |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 770032-1 Datasheet
Download the complete datasheet for TE Connectivity 770032-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

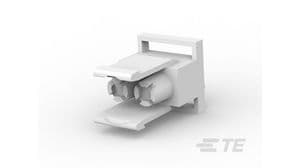

Product Images
