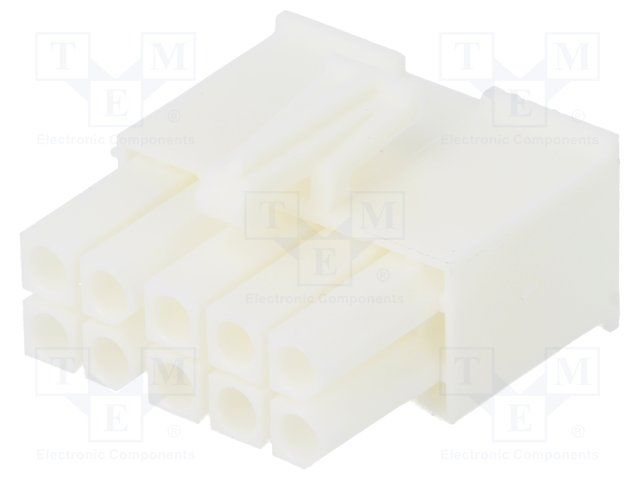

10 Pos 9.5A 600V Rectangular Plug Housing, Wire-to-Wire, Crimp

TE Connectivity

770580-1

Name: 770580-1 TE Connectivity
Brand: TE Connectivity
SKU: 770580-1

10 Pos 9.5A 600V Rectangular Plug Housing, Wire-to-Wire, Crimp

10-position, 2-row, male wire-to-wire connector housing with a straight orientation. Features brass contacts with tin plating, a 9.5A current rating, and a 600V AC/600.6kV DC voltage rating. Constructed from white Nylon material with a UL94 V-0 flammability rating, operating between -20°C and 105°C. Designed for free hanging or cable mounting, accepting wire gauges from 30AWG to 16AWG. This RoHS and ELV compliant component is part of the Mini-Universal MATE-N-LOK series.

Voltage Rating600V

Current Rating9.5A

MountingFree Hanging, Cable

Quick Jump:

Technical Specifications

TE Connectivity 770580-1 technical specifications.

General

Approvals	CSA
Color	White
Connector System	Wire-to-Wire
Contact Gender	Male
Contact Material	Brass
Contact Plating	Tin
Contact Retention	No (Without)
Contact Type	Male or Female
Current Rating	9.5A
Depth	23.83mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Height	15.19mm
Housing Color	White
Lead Free	Lead Free
Lead Pitch	4.14mm
Length	22.4mm
Material	Nylon
Max Current Rating	9.5A
Max Operating Temperature	105°C
Min Operating Temperature	-20°C
Max Voltage Rating (AC)	600V
Max Voltage Rating (DC)	600.6kV
Mount	Free Hanging, Cable
Number of Circuits	10
Number of Contacts	10
Number of Positions	10
Number of Rows	2
Orientation	Straight
Package Quantity	1
Packaging	Bulk
Pitch	0.162inch
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	0.162mm
Sealable	No (Without)
Series	Mini-Universal MATE-N-LOK
Termination	Crimp
VDE Tested	Yes
Voltage Rating	600V
Width	15.19mm
Wire Gauge (Max)	16AWG
Wire Gauge (Min)	30AWG
Wire/Cable Gauge	30AWG
