14-position, 2-row wire-to-wire connector plug housing. Features a straight, free-hanging, cable mount orientation with a 0.162-inch pitch. Rated for 9.5A current and 600V AC/600.6kV DC voltage. Constructed from white nylon with a UL94 V-0 flammability rating. Accommodates wire gauges from 30AWG to 16AWG.
Voltage Rating600V
Current Rating9.5A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 770582-1 technical specifications.
General
Approvals
CSA
Body/Shell Style
PLUG
Color
White
Connector System
Wire-to-Wire
Contact Gender
Male
Contact Retention
No (Without)
Contact Type
Male or Female
Current Rating
9.5A
Depth
23.83mm
DIN Conformance
No
Empty Shell
Yes
Filter Feature
No
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
White
IEC Conformance
No
Length
30.68mm
Manufacturer Series
770582
Material
Nylon
Mating Information
MULTIPLE MATING PARTS AVAILABLE
Max Operating Temperature
105°C
Min Operating Temperature
-20°C
Max Voltage Rating (AC)
600V
Max Voltage Rating (DC)
600.6kV
MIL Conformance
No
Mixed Contacts
No
Mount
Free Hanging, Cable
Number of Contacts
14
Number of Positions
14
Number of Rows
2
Option
General Purpose
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Pitch
0.162inch
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
0.162mm
Sealable
No (Without)
Series
Mini-Universal MATE-N-LOK
Shell Material
Polyamide
Termination
Crimp
VDE Tested
Yes
Voltage Rating
600V
Width
15.19mm
Wire Gauge (Max)
16AWG
Wire Gauge (Min)
30AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 770582-1 Datasheet
Download the complete datasheet for TE Connectivity 770582-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

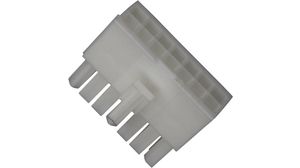

Product Images
