24-position, 2-row wire-to-wire connector housing with a straight, free-hanging, cable mount orientation. Features a 9.5A current rating, 600V AC/DC voltage rating, and operates within a -20°C to 105°C temperature range. Constructed from white nylon with a UL94 V-0 flammability rating, this connector accepts male or female contacts and supports wire gauges from 30AWG to 16AWG. It is RoHS compliant and VDE tested.
Voltage Rating600V
Current Rating9.5A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 770587-1 technical specifications.
General
| Approvals | CSA |
| Color | White |
| Connector System | Wire-to-Wire |
| Contact Gender | Male |
| Contact Retention | No (Without) |
| Contact Type | Male or Female |
| Current Rating | 9.5A |
| Depth | 23.83mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 15.19mm |
| Housing Color | White |
| Length | 51.38mm |
| Material | Nylon |
| Max Current Rating | 9.5A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 600.6kV |
| Mount | Free Hanging, Cable |
| Number of Contacts | 24 |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 0.162inch |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.162mm |
| Sealable | No (Without) |
| Series | Mini-Universal MATE-N-LOK |
| Termination | Crimp |
| VDE Tested | Yes |
| Voltage Rating | 600V |
| Width | 15.19mm |
| Wire Gauge (Max) | 16AWG |
| Wire Gauge (Min) | 30AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 770587-1 Datasheet
Download the complete datasheet for TE Connectivity 770587-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

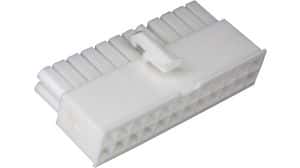

Product Images
