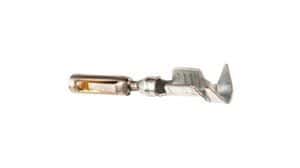

Female power contact for cable mounting, featuring a straight orientation and crimp termination. Constructed from copper nickel zinc alloy with gold plating, this component supports a 17A current rating and operates within a -40°C to 125°C temperature range. Designed for wire gauges from 20AWG to 16AWG, it has a 2.7mm insulation diameter and measures 19.3mm in length, 4.4mm in depth, and 3.8mm in height. This RoHS compliant assembly tool component is provided in a bag of 1000 units.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 770854-3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity 770854-3 technical specifications.
| Contact Material | COPPER NICKEL ZINC ALLOY, Brass, Copper Alloy, Nickel, COPPER ZINC ALLOY, Copper |
| Contact Plating | Gold |
| Contact Type | Power |
| Current Rating | 17A |
| Depth | 4.4mm |
| ELV | Compliant |
| Gender | Female |
| Height | 3.8mm |
| Insulation Diameter | 2.7mm |
| Lead Free | Lead Free |
| Length | 19.3mm |
| Max Current Rating | 17A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Ports | 1 |
| Number of Positions | 1 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Bag |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Ampseal |
| Shielding | Unshielded |
| Termination | Crimp |
| Wire Gauge (Max) | 16AWG |
| Wire Gauge (Min) | 20AWG |
| Wire/Cable Gauge | 20AWG |
| RoHS | Compliant |
