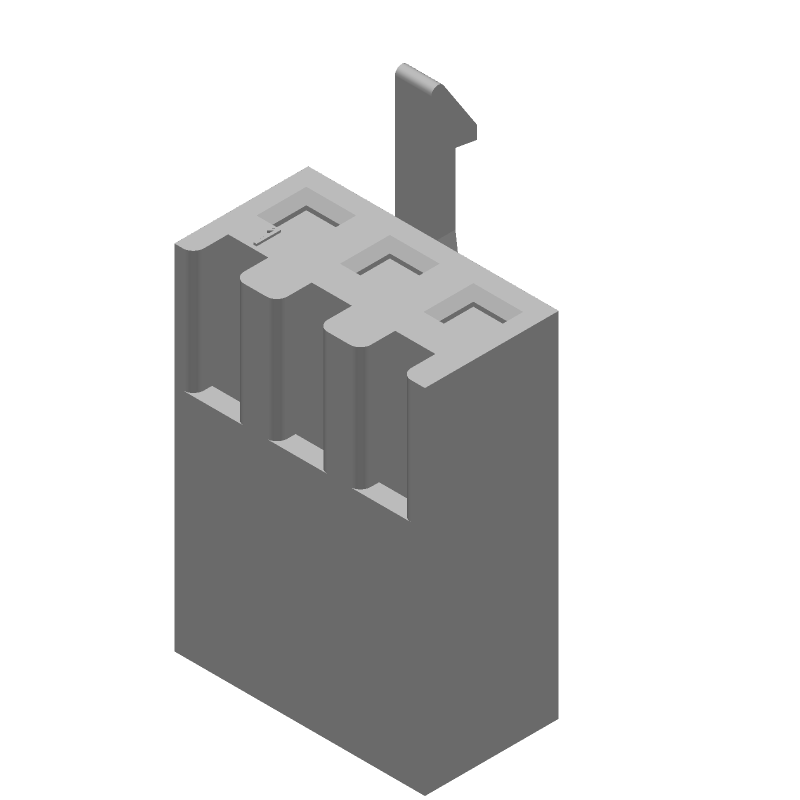

3-position, 1-row wire housing for wire-to-board applications. Features a 3.96mm pitch and straight orientation, accepting 16-24AWG wire. Rated for 6.5A contact current and 250V AC max voltage, with a temperature range of -67°C to 221°C. Housing is natural colored, UL94 V-2 flammability rated, and RoHS compliant. Designed for cable mounting with crimp termination.
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 770894-3 technical specifications.
General
Approvals
CSA
Color
Natural
Connector System
Wire-to-Board
Contact Current Rating
6.5A
Contact Retention
No (Without)
Contact Type
Female Socket
ELV
Compliant
Flammability Rating
UL94 V-2
Height
6.35mm
Housing Color
Natural
Lead Free
Not Applicable
Length
0.468inch
Mating Alignment
No (Without)
Mating Retention
No (Without)
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
250V
Mount
Free Hanging, Cable
Number of Contacts
3
Number of Positions
3
Number of Rows
1
Orientation
Straight
Package Quantity
1
Packaging
Bulk
PCB Mount Alignment
No (Without)
PCB Mount Retention
With
Pitch
0.156inch
RoHS Compliant
Yes
Sealable
No (Without)
Series
SL-156
Shrouded
No (Without)
Strain Relief
No (Without)
Termination
Crimp
Wire Gauge (Max)
24AWG
Wire Gauge (Min)
16AWG
Wire/Cable Gauge
24AWG
Compliance
RoHS
Compliant
