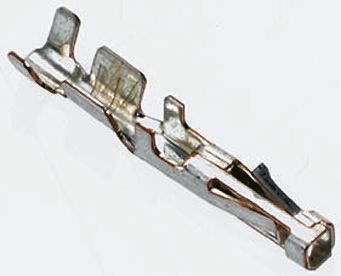

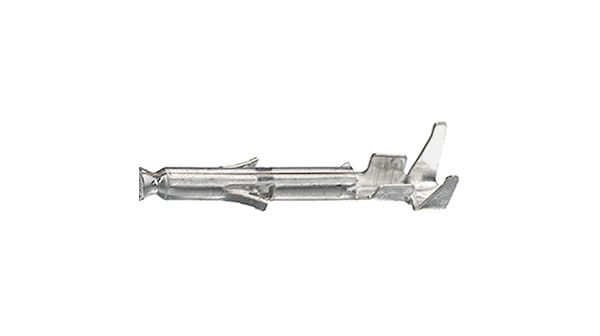

Female power contact for wire-to-wire connector systems, designed for discrete wire applications. Features a 22-26 AWG wire gauge range with a 1.75mm insulation diameter and 0.069-inch wire/cable diameter. Brass contact material with tin plating offers a 9.5A contact current rating and 11.2A current rating. Rated for 600V, this straight, unshielded contact operates from -67°C to 221°C and meets UL94 V-0 flammability standards.
Package600
Voltage Rating600V
Current Rating11.2A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 770986-1 technical specifications.
General
Approvals
UL
Package/Case
600
Circuit Application
Power
Connector System
Wire-to-Wire
Contact Current Rating
9.5A
Contact Gender
Female
Contact Material
Brass
Contact Plating
Tin
Contact Type
Power
Current Rating
11.2A
Depth
2.95mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Height
2.92mm
Insulation Diameter
1.75mm
Lead Free
Lead Free
Length
17.11mm
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Mount
Cable
Orientation
Straight
Package Quantity
1000
Packaging
Bag
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Mini-Universal MATE-N-LOK
Shielding
Unshielded
Termination
Crimp
VDE Tested
Yes
Voltage Rating
600V
Voltage Rating (AC)
600V
Wire Gauge (Max)
26AWG
Wire Gauge (Min)
22AWG
Wire/Cable Diameter
0.069inch
Wire/Cable Gauge
22AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 770986-1 Datasheet
Download the complete datasheet for TE Connectivity 770986-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
