14-position, 3-row right-angle header assembly for wire-to-device applications. Features tin-plated brass male pin contacts with a circular shape and 0.157-inch pitch. Through-hole, panel mount design with PBT insulation and a grey color. Rated for 250V AC, with a maximum operating temperature of 221°C and UL94 V-0 flammability.
MountingThrough Hole, Panel
Quick Jump:
Technical Specifications
TE Connectivity 776266-4 technical specifications.
General
| Circuit Application | Power |
| Color | Grey |
| Connector System | Wire-to-Device |
| Contact Finish - Mating | TIN |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Flammability Rating | UL94 V-0 |
| Insulation Color | Grey |
| Insulation Material | PBT |
| Length | 1.9212inch |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole, Panel |
| Number of Circuits | 14 |
| Number of Contacts | 14 |
| Number of Positions | 14 |
| Number of Rows | 3 |
| Number of Signal Positions | 14 |
| Package Quantity | 1 |
| Packaging | Bulk |
| PCB Mount Alignment | Yes (With) |
| PCB Mount Retention | With |
| PCB Thickness | 0.062inch |
| Pitch | 0.157inch |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Sealable | Yes (With) |
| Series | Ampseal |
| Shielding | Unshielded |
| Tab Thickness | 1.3mm |
| Termination | Solder |
| Voltage Rating (AC) | 250V |
| Width | 37.9mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 776266-4 Datasheet
Download the complete datasheet for TE Connectivity 776266-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

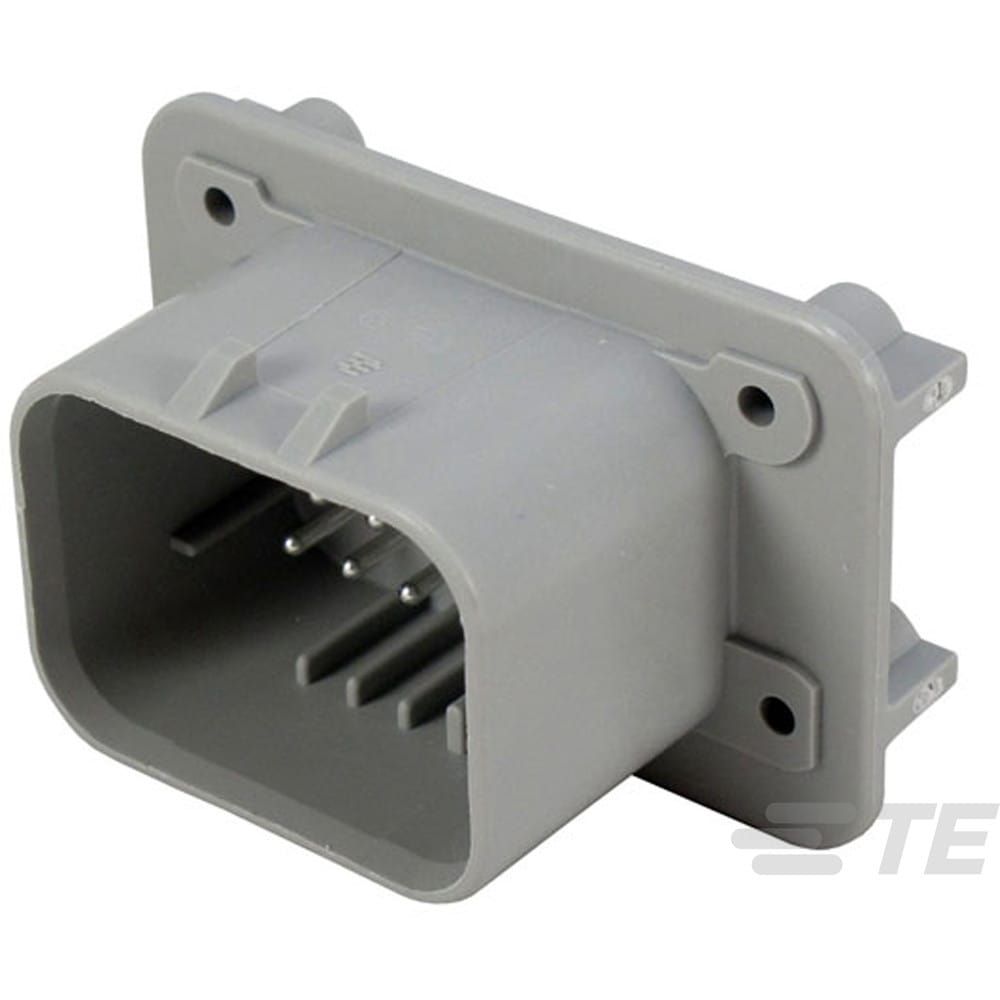

Product Images
