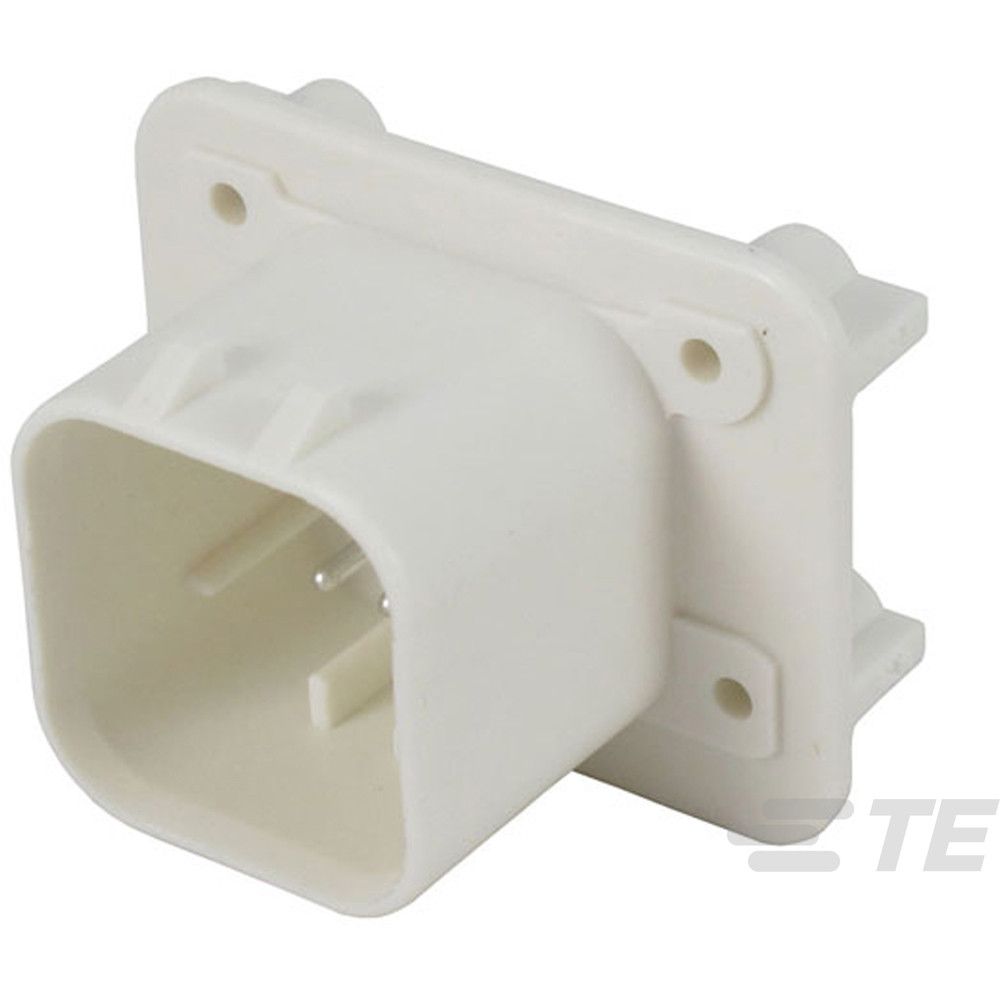

8-position, 3-row right-angle header for wire-to-device applications. Features tin contact plating, a 0.157-inch pitch, and a 1.3mm tab thickness. Designed for solder termination with a 250V AC max voltage rating and a 12-circuit capacity. Operates across a -40°C to 221°C temperature range, with UL94 V-0 flammability rating. Includes PCB mount alignment and retention features.
Quick Jump:
Technical Specifications
TE Connectivity 776279-2 technical specifications.
General
| Circuit Application | Power |
| Color | Natural |
| Connector System | Wire-to-Device |
| Contact Plating | Tin |
| Flammability Rating | UL94 V-0 |
| Length | 40.8mm |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Number of Circuits | 12 |
| Number of Contacts | 12 |
| Number of Positions | 8 |
| Number of Rows | 3 |
| Number of Signal Positions | 8 |
| Package Quantity | 1 |
| Packaging | Bulk |
| PCB Mount Alignment | Yes (With) |
| PCB Mount Retention | With |
| PCB Thickness | 0.062inch |
| Pitch | 0.157inch |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Sealable | Yes (With) |
| Shielding | Unshielded |
| Tab Thickness | 1.3mm |
| Termination | Solder |
| Width | 1.264inch |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 776279-2 Datasheet
Download the complete datasheet for TE Connectivity 776279-2 to view detailed technical specifications.
