12-position, 2-row wire-to-wire connector assembly featuring female socket contacts and a straight, male gender. Constructed with PBT thermoplastic housing in yellow, this connector offers a 0.177-inch pitch and 5.3mm row spacing. It operates within a temperature range of -40°C to 125°C, is UL94 HB flammability rated, and is sealable with accessories. The free-hanging mount design supports crimp termination and is polarized for secure connection.
MountingFree Hanging
PolarityYes
Quick Jump:
Technical Specifications
TE Connectivity 776437-3 technical specifications.
General
| Body Material | PBT |
| Color | Yellow |
| Connector System | Wire-to-Wire |
| Contact Type | Female Socket |
| Flammability Rating | UL94 HB |
| Gender | Male |
| Height | 1.24inch |
| Housing Color | Yellow |
| Hybrid Connector | No |
| Length | 38.33mm |
| Material | Thermoplastic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Number of Contacts | 12 |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 14 |
| Packaging | Bulk |
| Pitch | 0.177inch |
| Polarized | Yes |
| RoHS Compliant | Yes |
| Row Spacing | 5.3mm |
| Sealable | Yes (With) |
| Series | AMPSEAL 16 |
| Serviceable | Yes |
| Strain Relief | Add By Accessory |
| Termination | Crimp |
| Width | 36.8mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 776437-3 Datasheet
Download the complete datasheet for TE Connectivity 776437-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

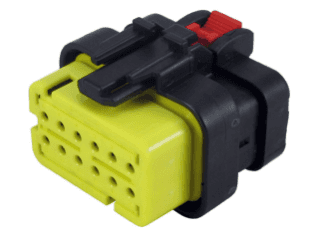

Product Images
