Eight-position, two-row straight wire-to-wire connector housing with male pin contacts, designed for cable mounting. Features a green PBT thermoplastic body with a 4.5mm pitch and 5.3mm row spacing, operating within a -40°C to 125°C temperature range. This polarized, sealable housing offers UL94 HB flammability rating and is suitable for automotive applications.
MountingFree Hanging, Cable
PolarityYes
Quick Jump:
Technical Specifications
TE Connectivity 776495-4 technical specifications.
General
| Body Material | PBT |
| Color | Green |
| Connector System | Wire-to-Wire |
| Contact Type | Male Pin |
| Flammability Rating | UL94 HB |
| Gender | Female |
| Height | 1.049inch |
| Housing Color | Green |
| Hybrid Connector | No |
| Length | 1.126inch |
| Material | Thermoplastic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 250 |
| Packaging | Bulk |
| Pitch | 0.177inch |
| Polarized | Yes |
| RoHS Compliant | Yes |
| Row Spacing | 5.3mm |
| Sealable | Yes (With) |
| Series | AMPSEAL 16 |
| Serviceable | Yes |
| Strain Relief | Add By Accessory |
| Termination | Crimp |
| Width | 47.55mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 776495-4 Datasheet
Download the complete datasheet for TE Connectivity 776495-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

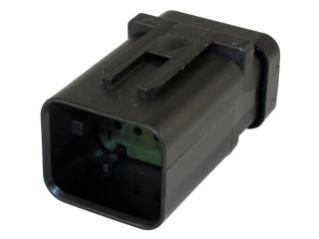

Product Images
