3-position wire-to-wire receptacle housing for cable mounting, featuring a straight orientation and a 4.14mm pitch. This natural colored housing supports 3 male or female contacts, with a current rating of 9.5A and a voltage rating of 600V. It operates within a temperature range of -67°C to 221°C and is UL recognized, UL94 V-0 flammability rated, and RoHS compliant.
Voltage Rating600V
Current Rating9.5A
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 794187-1 technical specifications.
General
| Approvals | UL |
| Color | Natural |
| Connector System | Wire-to-Wire |
| Contact Gender | Female |
| Contact Retention | No (Without) |
| Contact Type | Male or Female |
| Current Rating | 9.5A |
| Depth | 24.51mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Housing Color | Natural |
| Lead Free | Not Applicable |
| Length | 18.69mm |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -67°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 600.6kV |
| Mount | Free Hanging |
| Number of Circuits | 3 |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 700 |
| Packaging | Bag |
| Pitch | 0.162inch |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Mini-Universal MATE-N-LOK II |
| Termination | Crimp |
| Voltage Rating | 600V |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 16AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 794187-1 Datasheet
Download the complete datasheet for TE Connectivity 794187-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

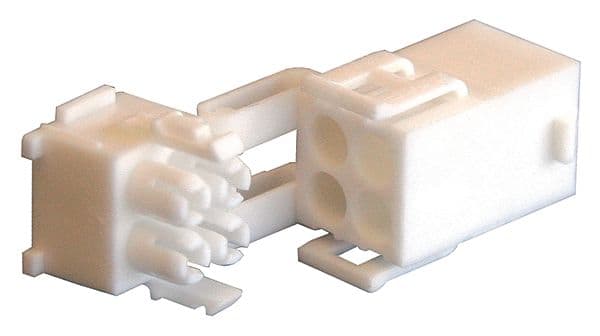

Product Images
