Wire-to-wire connector accessory featuring a straight interfacial seal for robust environmental protection. Constructed from blue silicone rubber, this component offers a 3-position, 1-row configuration with a 6.35mm pitch. It supports a current rating of 19A and a voltage rating of 600V, accommodating wire gauges from 30AWG to 16AWG. Operating within a temperature range of -55°C to 120°C, it provides IP57 ingress protection.
Voltage Rating600V
Current Rating19A
Quick Jump:
Technical Specifications
TE Connectivity 794271-1 technical specifications.
General
Color
Blue
Connector System
Wire-to-Wire
Current Rating
19A
Depth
7.62mm
Length
20.32mm
Material
Rubber, Silicone
Max Operating Temperature
120°C
Min Operating Temperature
-55°C
Number of Circuits
3
Number of Contacts
3
Number of Positions
3
Number of Rows
1
Package Quantity
500
Packaging
Bag
Pitch
6.35mm
Radiation Hardening
No
Ratings
IP57
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MATE-N-LOK
Voltage Rating
600V
Wire Gauge (Max)
16AWG
Wire Gauge (Min)
30AWG
Wire/Cable Diameter
3.3mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 794271-1 Datasheet
Download the complete datasheet for TE Connectivity 794271-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

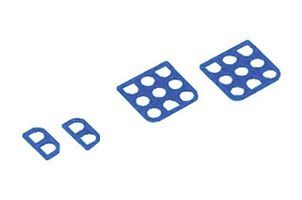

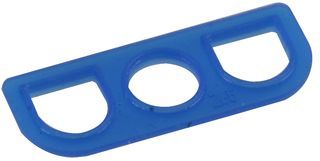

Product Images
