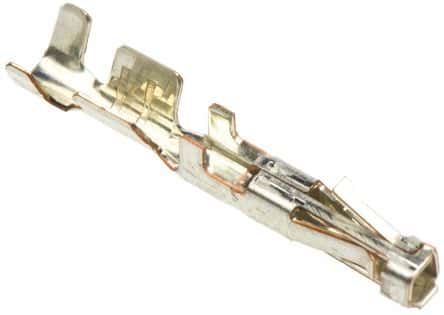

Female power contact for wire-to-wire connector systems, featuring a straight, crimp termination. Rated for 5A current and 250V AC, this component utilizes bright tin-plated bronze for optimal conductivity. Designed for discrete wire, it accommodates wire gauges from 24AWG to 20AWG with an insulation diameter of 1.52mm. Operating within a temperature range of -40°C to 221°C, this RoHS compliant contact is supplied in bags of 500.
Voltage Rating250V
Current Rating5A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 794610-1 technical specifications.
General
Circuit Application
Power
Connector System
Wire-to-Wire
Contact Current Rating
5A
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Tin, Bright
Contact Type
Power
Current Rating
5A
Depth
2.67mm
ELV
Compliant
Gender
Female
Height
1.93mm
Insulation Diameter
1.52mm
Lead Free
Lead Free
Length
12.53mm
Max Operating Temperature
221°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Mount
Cable
Number of Contacts
1
Number of Ports
1
Orientation
Straight
Package Quantity
500
Packaging
Bag
Pitch
3mm
Plating Thickness
4um
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Micro MATE-N-LOK
Termination
Crimp
Voltage Rating
250V
Wire Gauge (Max)
20AWG
Wire Gauge (Min)
24AWG
Wire/Cable Gauge
24AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 794610-1 Datasheet
Download the complete datasheet for TE Connectivity 794610-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
