8-position, 2-row, male pin connector with a straight orientation, designed for wire-to-wire applications. Features brass male pin contacts and a black nylon housing with a UL94 V-0 flammability rating. Rated for 5A current and 250V AC, operating between -40°C and 221°C. This panel-mount connector utilizes crimp termination and offers mating alignment and retention.
Voltage Rating250V
Current Rating5A
MountingPanel, Snap in
Quick Jump:
Technical Specifications
TE Connectivity 794615-8 technical specifications.
General
| Approvals | CSA |
| Color | Black |
| Connector System | Wire-to-Wire |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Retention | No (Without) |
| Contact Type | Male Pin |
| Current Rating | 5A |
| Depth | 16.89mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 8.71mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 12.85mm |
| Material | Nylon |
| Mating Alignment | Yes (With) |
| Mating Retention | Yes (With) |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Panel, Snap in |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Bag |
| Panel Thickness | 0.091inch |
| Pitch | 0.118inch |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.118mm |
| Sealable | No (Without) |
| Series | MATE-N-LOK |
| Strain Relief | No (Without) |
| Termination | Crimp |
| VDE Tested | Yes |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| Wire/Cable Gauge | 20AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 794615-8 Datasheet
Download the complete datasheet for TE Connectivity 794615-8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

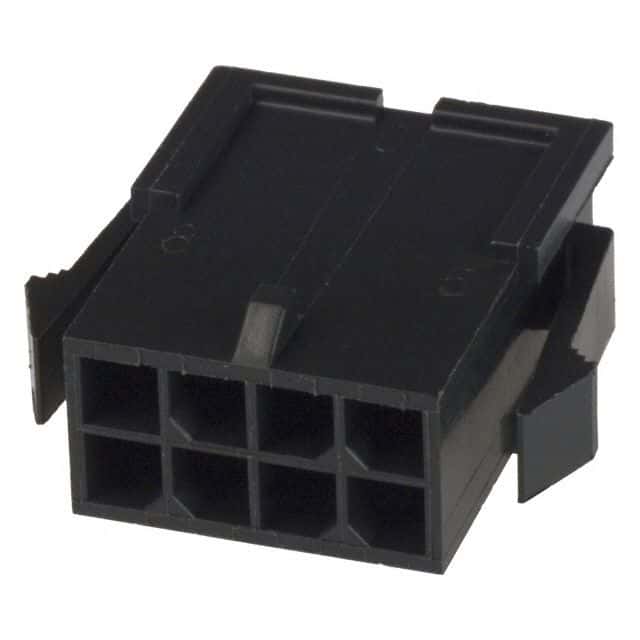

Product Images
