Six-position, straight, male pin wire housing for crimp termination. Features a 4.2mm pitch and 4.2mm row spacing, with a 600V voltage rating and 9A current rating. Constructed from natural colored Nylon, this panel-mount connector operates within a -40°C to 221°C temperature range and boasts UL94 V-2 flammability. Compliant with ELV and Lead Free standards, it is suitable for discrete wire applications.
Voltage Rating600V
Current Rating9A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 794953-6 technical specifications.
General
Approvals
CSA
Color
Natural, Beige
Connector System
Wire-to-Wire
Contact Gender
Male
Contact Retention
No (Without)
Contact Style
Pin
Contact Type
Male Pin
Current Rating
9A
Depth
23.9mm
ELV
Compliant
Flammability Rating
UL94 V-2
Gender
Male
Height
9.6mm
Housing Color
Natural
Insulation Diameter
0.122inch
Lead Free
Lead Free
Length
0.543inch
Material
Nylon
Max Operating Temperature
221°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
600V
Mount
Panel
Number of Circuits
6
Number of Contacts
6
Number of Positions
6
Number of Rows
2
Operating Supply Voltage
600V
Orientation
Straight
Package Quantity
500
Packaging
Bag
Pitch
4.2mm
RoHS Compliant
Yes
Row Spacing
4.2inch
Sealable
No (Without)
Selectively Loaded
No (Without)
Series
VAL-U-LOK
Termination
Crimp
VDE Tested
No
Voltage Rating
600V
Width
0.94inch
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 794953-6 Datasheet
Download the complete datasheet for TE Connectivity 794953-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

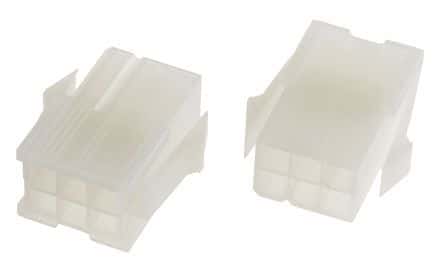

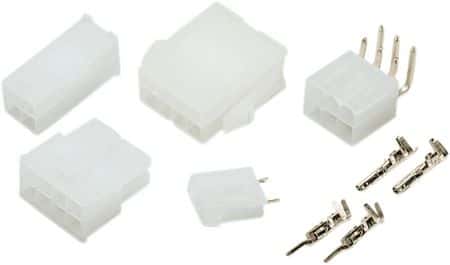

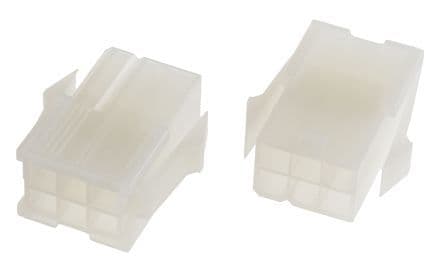

Product Images
