24-position, straight, male circular connector plug assembly with female crimp contacts. Features a black nylon/polyamide body and shell, rated IP67 and IP65 for waterproof and dust-tight sealing. Operates within a temperature range of -55°C to 125°C with a 600V voltage rating. Approvals include UL, CSA, and VDE, with UL94 V-0 flammability rating.
Voltage Rating600V
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 796188-1 technical specifications.
General
| Approvals | UL, CSA, VDE |
| Body Material | Nylon, Polyamide |
| Color | Black |
| Connector System | Wire-to-Wire |
| Contact Gender | Female |
| Contact Protection | Yes (With) |
| Contact Shape | Circular |
| Contact Type | CRIMP |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Length | 45.34mm |
| Mating Alignment | Yes (With) |
| Mating Retention | Yes (With) |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 600V |
| Mount | Free Hanging, Cable |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Number of Positions | 24 |
| Number of Signal Positions | 24 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bag |
| Radiation Hardening | No |
| Ratings | IP67, Waterproof, Dust Tight, IP65 |
| RoHS Compliant | Yes |
| Sealable | Yes (With) |
| Series | CPC Series 1 |
| Shell Material | Nylon |
| Shell Size | 23 |
| Shielding | Unshielded |
| Strain Relief | No (Without) |
| Termination | Crimp |
| VDE Tested | No |
| Voltage Rating | 600V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 796188-1 Datasheet
Download the complete datasheet for TE Connectivity 796188-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

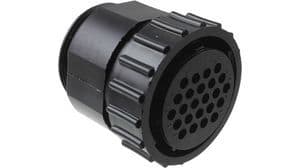

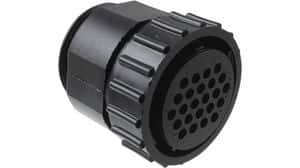

Product Images
