3-position, right-angle plug terminal block with a 5.08mm pitch. Features a 15A current rating and 300V voltage rating, constructed with a black Nylon housing and Tin-plated Bronze contacts. Designed for through-hole mounting, this UL-approved component operates within a temperature range of -40°C to 110°C and meets UL94 V-0 flammability standards. Includes interlock and side stackable features.
Voltage300V
Current15A
Voltage Rating300V
Current Rating15A
Quick Jump:
Technical Specifications
TE Connectivity 796635-3 technical specifications.
General
| Approvals | UL |
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Current | 15A |
| Current Rating | 15A |
| Depth | 18.4mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Interlock | Yes (With) |
| Lead Free | Lead Free |
| Length | 15.24mm |
| Material | Nylon |
| Max Current Rating | 15A |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (AC) | 300V |
| Max Voltage Rating (AC) | 300V |
| Mount | Through Hole |
| Number of Circuits | 3 |
| Number of Contacts | 3 |
| Number of Levels | 1 |
| Number of Poles | 3 |
| Number of Positions | 3 |
| Number of Positions Per Level | 3 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 200 |
| Packaging | Box |
| Pitch | 5.08mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Screw Flange | No (Without) |
| Screwless Terminal Block | No (Without) |
| Series | Buchanan |
| Shrouded | No (Without) |
| Side Stackable | Yes (With) |
| Termination | Screw |
| Voltage | 300V |
| Voltage Rating | 300V |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 30AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 796635-3 Datasheet
Download the complete datasheet for TE Connectivity 796635-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

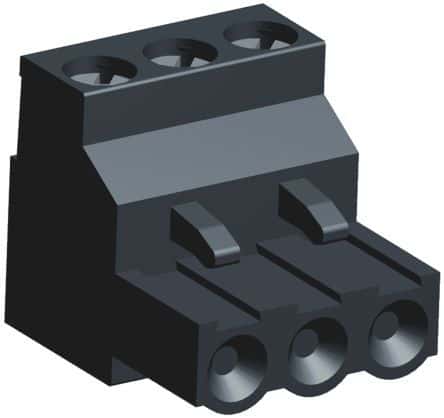

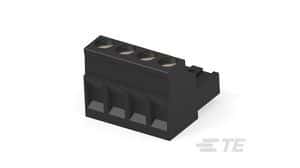

Product Images
