Shrouded Header, 4 Positions, 1 Row, Straight Orientation, Through Hole Mount. Features a 5.08mm pitch, 15A current rating, and 300V voltage rating. Constructed with a Nylon housing in Green, it utilizes Bronze contacts with Tin plating. Operating temperature range is -40°C to 110°C. Compliant with UL, RoHS, and ELV standards.
Voltage300V
Current15A
Voltage Rating300V
Current Rating15A
Quick Jump:
Technical Specifications
TE Connectivity 796636-4 technical specifications.
General
Approvals
UL
Closed End
Yes (With)
Color
Green
Connector System
Wire-to-Board
Contact Material
Bronze
Contact Plating
Tin
Current
15A
Current Rating
15A
Depth
8.35mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Green
Interlock
No (Without)
Lead Free
Lead Free
Length
22.14mm
Material
Nylon
Max Current Rating
15A
Max Operating Temperature
110°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
300V
Mount
Through Hole
Number of Contacts
4
Number of Levels
1
Number of Poles
4
Number of Positions
4
Number of Positions Per Level
4
Number of Rows
1
Operating Supply Voltage
300V
Orientation
Straight
Package Quantity
150
Packaging
Box
Pitch
5.08mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
No (Without)
Series
Termi-Blok, Buchanan
Shrouded
Yes (With)
Side Stackable
No (Without)
Tail Length
3.5mm
Termination
Solder
Voltage
300V
Voltage Rating
300V
Voltage Rating (AC)
300V
Width
8.35mm
Wire Gauge (Max)
12AWG
Wire Gauge (Min)
30AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 796636-4 Datasheet
Download the complete datasheet for TE Connectivity 796636-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

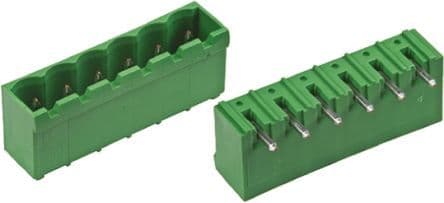

Product Images
