6-position shrouded header with a 5.08mm pitch, straight orientation, and solder termination. Features a 15A current rating, 300V voltage rating, and operates within a -40°C to 105°C temperature range. Constructed with bronze contacts plated in tin, housed in black UL94 V-0 compliant material. Through-hole mounting with a 3.5mm tail length.
Voltage300V
Current15A
Voltage Rating300V
Current Rating15A
Quick Jump:
Technical Specifications
TE Connectivity 796637-6 technical specifications.
General
| Closed End | Yes (With) |
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Current | 15A |
| Current Rating | 15A |
| Depth | 8.35mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Interlock | No (Without) |
| Length | 32.3mm |
| Max Current Rating | 15A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 300V |
| Mount | Through Hole |
| Number of Contacts | 6 |
| Number of Levels | 1 |
| Number of Positions | 6 |
| Number of Positions Per Level | 6 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Box |
| Pitch | 5.08mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Screw Flange | No (Without) |
| Screwless Terminal Block | No (Without) |
| Series | Termi-Blok, Buchanan |
| Shrouded | Yes (With) |
| Side Stackable | No (Without) |
| Tail Length | 3.5mm |
| Termination | Solder |
| Voltage | 300V |
| Voltage Rating | 300V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 796637-6 Datasheet
Download the complete datasheet for TE Connectivity 796637-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

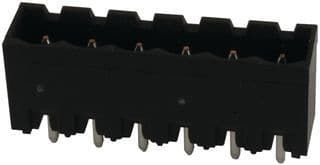

Product Images
