8-position, right-angle terminal block plug with a 5mm pitch. Features a 15A current rating and 300V AC voltage rating. Constructed with a green nylon housing and bronze contacts with tin plating. Designed for free-hanging, cable mounting with screw termination. Operates within a temperature range of -40°C to 110°C and is UL94 V-0 flammability rated.
Voltage300V
Current15A
Voltage Rating300V
Current Rating15A
Quick Jump:
Technical Specifications
TE Connectivity 796640-8 technical specifications.
General
Approvals
UL
Color
Green
Contact Material
Bronze
Contact Plating
Tin
Current
15A
Current Rating
15A
Depth
18.4mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Green
Interlock
No (Without)
Lead Free
Lead Free
Length
40mm
Material
Nylon
Max Current Rating
15A
Max Operating Temperature
110°C
Min Operating Temperature
-40°C
Max Supply Voltage (AC)
300V
Max Voltage Rating (AC)
300V
Mount
Free Hanging, Cable
Number of Circuits
8
Number of Contacts
8
Number of Levels
1
Number of Poles
8
Number of Positions
8
Number of Positions Per Level
8
Number of Rows
1
Orientation
Right Angle
Package Quantity
100
Packaging
Bulk
Pitch
5mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
No (Without)
Series
Buchanan
Shrouded
No (Without)
Side Stackable
Yes (With)
Termination
Screw
Voltage
300V
Voltage Rating
300V
Voltage Rating (AC)
300V
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
30AWG
Wire/Cable Gauge
30AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 796640-8 Datasheet
Download the complete datasheet for TE Connectivity 796640-8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

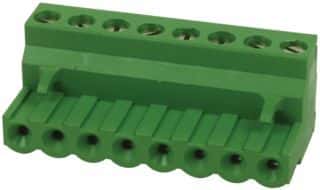

Product Images
