9-position, 1-level PCB mount terminal block with a 5.08mm pitch. Features brass contacts with tin plating, rated for 17.5A and 300V AC. Operates between -40°C and 105°C, with a UL94 V-0 flammability rating. Includes interlock functionality and straight orientation for through-hole mounting.
Voltage300V
Current17.5A
Voltage Rating300V
Current Rating17.5A
Quick Jump:
Technical Specifications
TE Connectivity 796949-9 technical specifications.
General
Closed End
No (Without)
Color
Black
Contact Material
Brass
Contact Plating
Tin
Current
17.5A
Current Rating
17.5A
ELV
Compliant
Flammability Rating
UL94 V-0
Housing Color
Black
Interlock
Yes (With)
Max Current Rating
17.5A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
300V
Mount
Through Hole
Number of Circuits
9
Number of Contacts
9
Number of Levels
1
Number of Positions
9
Number of Positions Per Level
9
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Box
Pitch
5.08mm
Plating
Brass
Radiation Hardening
No
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
No (Without)
Series
Buchanan
Side Stackable
No (Without)
Tail Length
3.5mm
Termination
Solder
Voltage
300V
Voltage Rating
300V
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
30AWG
Wire/Cable Gauge
12AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 796949-9 Datasheet
Download the complete datasheet for TE Connectivity 796949-9 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

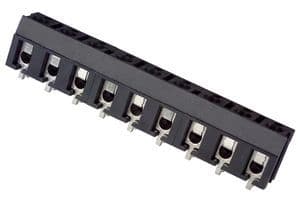

Product Images
