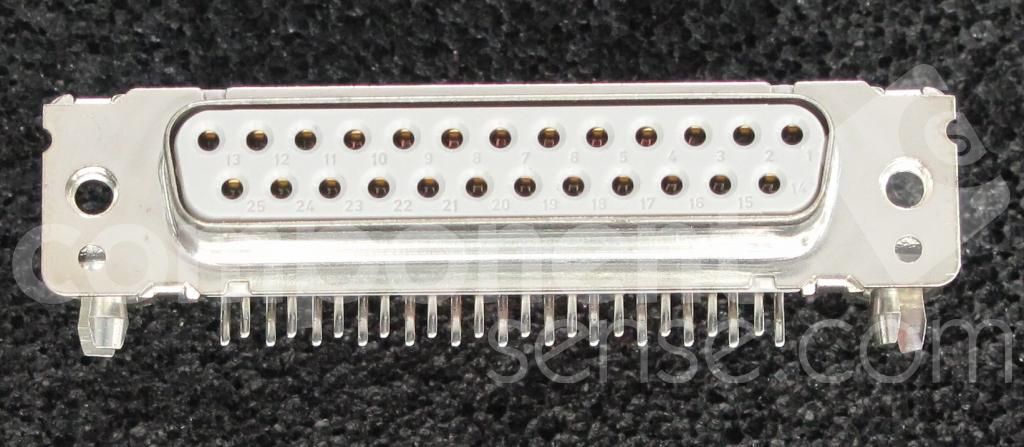

25-position, 2-row right-angle D-subminiature socket connector with a 2.76mm pitch. Features gold-plated bronze signal contacts and a steel shell. Rated for 2.2A current and operates from -55°C to 125°C. Through-hole mounting with solder termination and integrated mating connector lock.
Current Rating2.2A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 8-1393480-3 technical specifications.
General
| Color | Grey |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Post Length | 3.2mm |
| Contact Type | Signal |
| Current Rating | 2.2A |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Grey |
| Insulation Material | Polybutylene |
| Lead Free | Lead Free |
| Lead Length | 3.2mm |
| Mating Connector Lock | Yes (With) |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 25 |
| Number of Ports | 1 |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 400 |
| Packaging | Bulk |
| Panel Mount Retention | No (Without) |
| PCB Mount Retention | With |
| PCB Mounting Orientation | Right Angle |
| Pitch | 2.76mm |
| Plating | Tin |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | AMPLIMITE HD-20 |
| Shell Material | Steel |
| Shell Size | B |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 8-1393480-3 Datasheet
Download the complete datasheet for TE Connectivity 8-1393480-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
