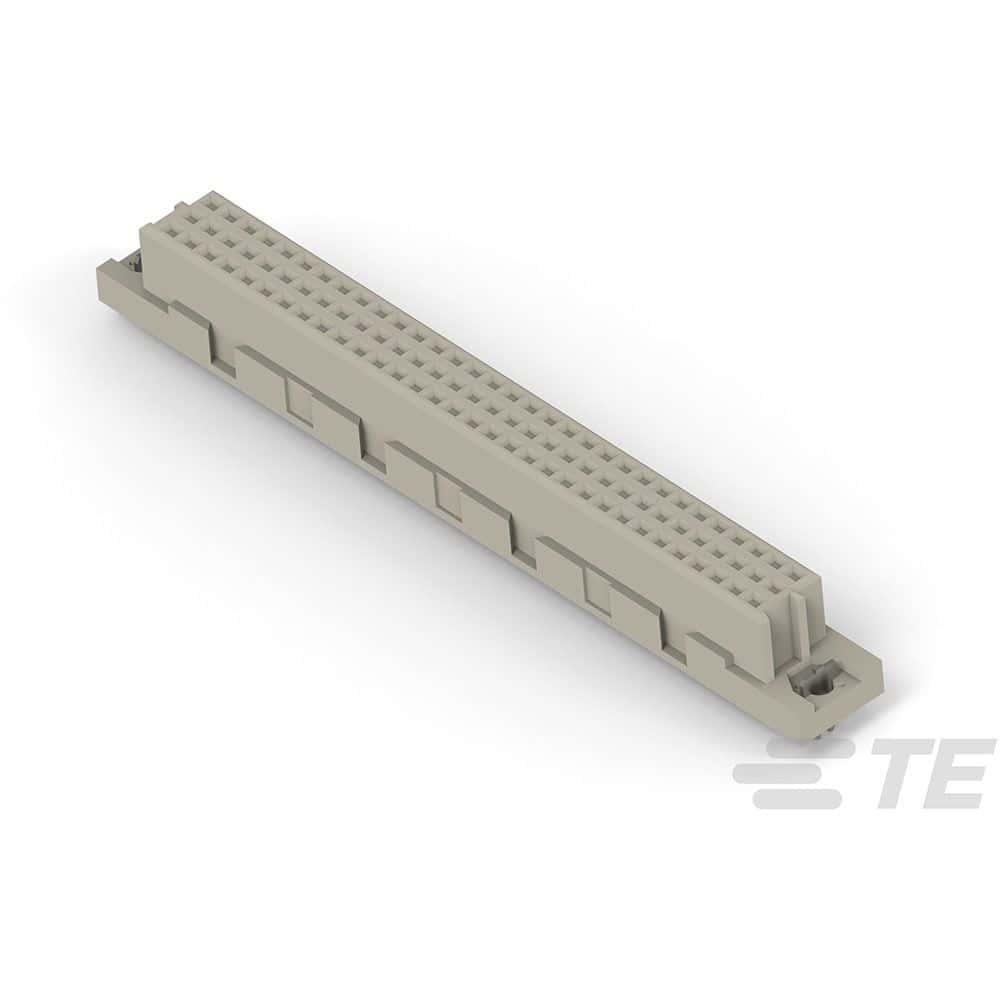

96-position, 3-row female header for board-to-board applications. Features a 2.54mm pitch and straight, through-hole mounting orientation. Bronze contacts with gold plating ensure reliable conductivity, while the PBT insulation material and UL94 V-0 flammability rating provide durability. Operating temperature range from -55°C to 125°C. Includes mating alignment and PCB mount retention.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 8-1393640-9 technical specifications.
General
| Connector System | Board-to-Board |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Post Length | 0.114inch |
| Depth | 10.6mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Height | 10.6mm |
| Housing Color | Grey |
| Insulation Material | PBT |
| Length | 95mm |
| Make First / Break Last | No |
| Mating Alignment | Yes (With) |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 96 |
| Number of Positions | 96 |
| Number of Rows | 3 |
| Orientation | Straight |
| Packaging | Box |
| PCB Mount Retention | With |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.6mm |
| Pitch | 2.54mm |
| RoHS Compliant | Yes |
| Series | Eurocard |
| Shielding | Unshielded |
| Tail Length | 2.9mm |
| Termination | Solder |
