Ring tongue terminal for 10-12 AWG wire, featuring a copper body with tin plating. This female, insulated terminal offers a straight orientation and a nylon insulation in yellow. It supports insulated wire and has a maximum voltage rating of 300V AC. The terminal is RoHS compliant and designed for crimp termination.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 8-35108-1 technical specifications.
General
Body Material
Copper
Body Plating
Tin
Color
Yellow
Contact Material
Copper
Contact Plating
Tin
Depth
9.52mm
ELV
Compliant
Finish
Tin
Gender
Female
Government Qualified
No
Heavy Duty
No
Insulated Wire Support
Yes
Insulation
Insulated
Insulation Color
Yellow
Insulation Diameter
6.35mm
Insulation Material
Nylon
Lead Free
Not Applicable
Length
1.08inch
Material
Copper
Mount
Free Hanging
Number of Holes
1
Orientation
Straight
Package Quantity
100
Packaging
Loose Piece
Plating
Tin
Plating Thickness
2.54um
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
PIDG
Stud Diameter
4.34mm
Stud Size
M4
Termination
Crimp
Tongue Thickness
1.02mm
Voltage Rating (AC)
300V
Wire Gauge (Max)
10AWG
Wire Gauge (Min)
12AWG
Wire/Cable Diameter
6.35mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 8-35108-1 Datasheet
Download the complete datasheet for TE Connectivity 8-35108-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

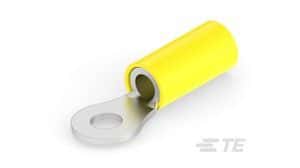

Product Images
