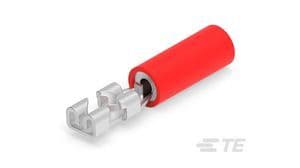

Female quick disconnect terminal, insulated with red nylon. Features brass body and contact material with tin plating. Rated for 300V AC, suitable for 18-22 AWG wire. Compliant with UL and CSA approvals, RoHS, and UL94 V-2 flammability. Mating tab width is 0.11 inches, with a 3.81mm diameter and 20.356mm length.
Quick Jump:
Technical Specifications
TE Connectivity 8-640923-1 technical specifications.
General
Approvals
UL, CSA
Body Material
Brass
Body Plating
Tin
Color
Red
Contact Material
Brass
Contact Plating
Tin
Diameter
3.81mm
ELV
Compliant
Flammability Rating
UL94 V-2
Gender
Female
Insulated Wire Support
Yes
Insulation
Insulated
Insulation Color
Red
Insulation Diameter
3.43mm
Insulation Material
Nylon
Lead Free
Not Applicable
Length
20.356mm
Material
Brass
Mating Tab Width
0.11inch
Orientation
Straight
Package Quantity
100
Packaging
Loose Piece
Plating
Tin
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
110
Terminal Material
Brass
Termination
Receptacle
Voltage Rating (AC)
300V
Wire Gauge (Max)
18AWG
Wire Gauge (Min)
22AWG
Wire/Cable Gauge
18AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 8-640923-1 Datasheet
Download the complete datasheet for TE Connectivity 8-640923-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
