9-position, 5mm pitch wire-to-wire connector housing for signal applications. Features female socket contacts, straight orientation, and a PBT insulation material. Rated IP67, this yellow, free-hanging cable mount housing operates from -40°C to 248°C with a 600V AC maximum voltage rating. Designed for crimp termination and compatible with 13AWG wire.
MountingFree Hanging, Cable
PolarityNo
Quick Jump:
Technical Specifications
TE Connectivity 8-968971-1 technical specifications.
General
| Circuit Application | Signal |
| Color | Yellow |
| Connector System | Wire-to-Wire |
| Contact Type | Female Socket |
| Depth | 24mm |
| ELV | Compliant |
| Gender | Female |
| Height | 24mm |
| Housing Color | Yellow |
| Hybrid Connector | No |
| Insulation Material | PBT |
| Lead Free | Lead Free |
| Length | 21mm |
| Mating Tab Width | 0.11inch |
| Max Operating Temperature | 248°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Mount | Free Hanging, Cable |
| Number of Contacts | 9 |
| Number of Positions | 9 |
| Number of Rows | 3 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Box |
| Pitch | 5mm |
| Polarized | No |
| Radiation Hardening | No |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.217inch |
| Sealable | No (Without) |
| Series | MCP |
| Serviceable | No |
| Strain Relief | No (Without) |
| Termination | Crimp |
| Width | 21mm |
| Wire/Cable Gauge | 13AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 8-968971-1 Datasheet
Download the complete datasheet for TE Connectivity 8-968971-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

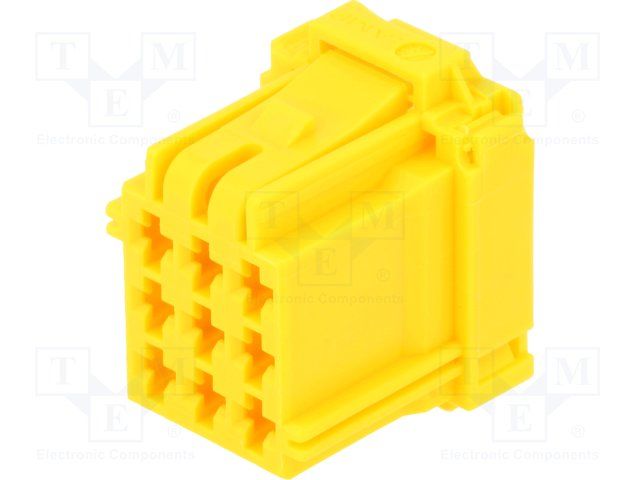

Product Images
