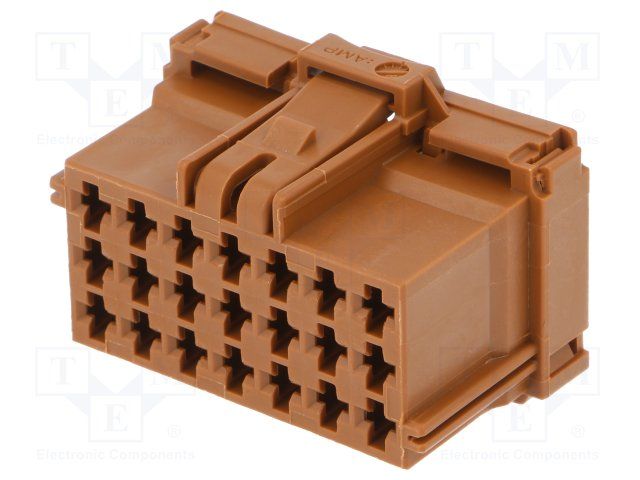

21-position, 3-row straight receptacle connector for signal applications. Features a 5mm pitch and 2.8mm mating tab width, with copper alloy contacts plated in tin. Rated IP67, this wire-to-wire connector system utilizes a PBT insulation material and operates within a temperature range of -40°C to 248°C. Designed for free-hanging, cable mounting with crimp termination.
Sign in to ask questions about the TE Connectivity 8-968975-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity 8-968975-1 technical specifications.
| Circuit Application | Signal |
| Color | Brown |
| Connector System | Wire-to-Wire |
| Contact Gender | Female |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Contact Type | Female Socket |
| Depth | 24mm |
| ELV | Compliant |
| Gender | Receptacle |
| Height | 24mm |
| Housing Color | Brown |
| Hybrid Connector | No |
| Insulation Material | PBT |
| Lead Free | Lead Free |
| Length | 1.476inch |
| Mating Tab Width | 0.11inch |
| Max Operating Temperature | 248°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 21 |
| Number of Positions | 21 |
| Number of Rows | 3 |
| Orientation | Straight |
| Package Quantity | 900 |
| Packaging | Carton |
| Pitch | 5mm |
| Polarized | No |
| Primary Type | RECEPTACLE |
| Radiation Hardening | No |
| Ratings | IP67 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.217inch |
| Sealable | No (Without) |
| Series | MCP |
| Serviceable | No |
| Strain Relief | No (Without) |
| Termination | Crimp |
| Width | 41mm |
| Wire/Cable Gauge | 13AWG |
| RoHS | Compliant |
