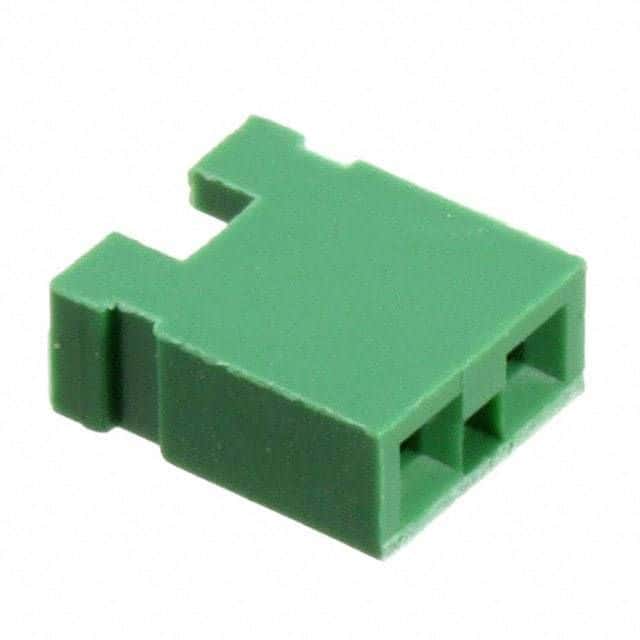

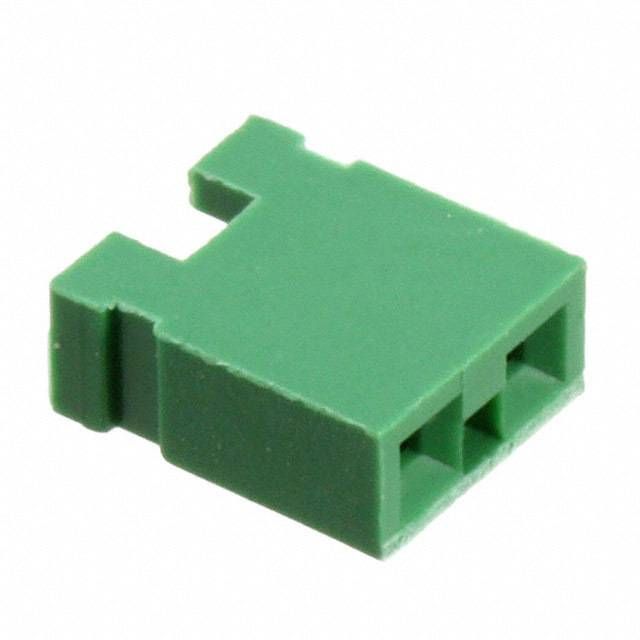

Automotive-grade female jumper shunt with a straight, single-row configuration, featuring 2 positions and 2 circuits on a 2.54mm pitch. Constructed with a copper body and gold-plated copper contacts, it offers a 3A contact current rating and operates within a -40°C to 85°C temperature range. The green housing is made of UL94 V-0 rated material, ensuring flame retardancy.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 827914-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity 827914-1 technical specifications.
| Body Material | Copper |
| Color | Green |
| Contact Current Rating | 3A |
| Contact Gender | Female |
| Contact Material | Copper |
| Contact Plating | Gold |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Height | 0.236inch |
| Housing Color | Green |
| Lead Free | Not Applicable |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Circuits | 2 |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1400 |
| Packaging | Box |
| Pitch | 2.54mm |
| Plating Thickness | 0.4um |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | AMPMODU MOD IV |
| Width | 6mm |
| RoHS | Compliant |
