8-position, 1.25mm pitch flex-to-board header with a straight, vertical PCB mounting orientation. Features tin-plated bronze contacts, a white thermoplastic housing, and a UL94 V-0 flammability rating. Rated for 1A contact current and 50V maximum voltage, operating between -40°C and 85°C. Includes mating alignment and PCB mount retention for secure connections.
Voltage Rating50V
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 84534-8 technical specifications.
General
| Body Plating | Tin |
| Color | Natural |
| Connector System | Flex-to-Board |
| Contact Current Rating | 1A |
| Contact Location | Top |
| Contact Material | Bronze |
| Contact Plating | Tin, Bright |
| Depth | 4.8mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Height | 0.307inch |
| Housing Color | White |
| Lead Pitch | 1.25mm |
| Length | 13.75mm |
| Material | Thermoplastic |
| Mating Alignment | Yes (With) |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 50V |
| Mount | Through Hole |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 2400 |
| Packaging | Box |
| PCB Mount Alignment | Yes (With) |
| PCB Mount Retention | With |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.6mm |
| Pin Diameter | 0.2mm |
| Pitch | 0.049inch |
| Plating Thickness | 0.8um |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Shielding | Unshielded |
| Shrouded | Yes (With) |
| Tail Length | 3.2mm |
| Termination | Through Hole |
| Voltage Rating | 50V |
| Width | 4.8mm |
| Wire/Cable Type | Flat Flex |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 84534-8 Datasheet
Download the complete datasheet for TE Connectivity 84534-8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

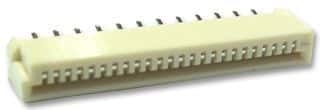

Product Images
