8 Pos FPC Connector, 1mm Pitch, Right Angle, SMD, 1A, 200V

TE Connectivity

84952-8

Name: 84952-8 TE Connectivity
Brand: TE Connectivity
SKU: 84952-8

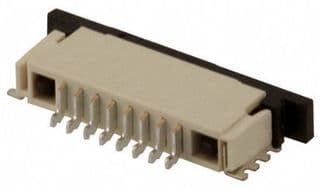

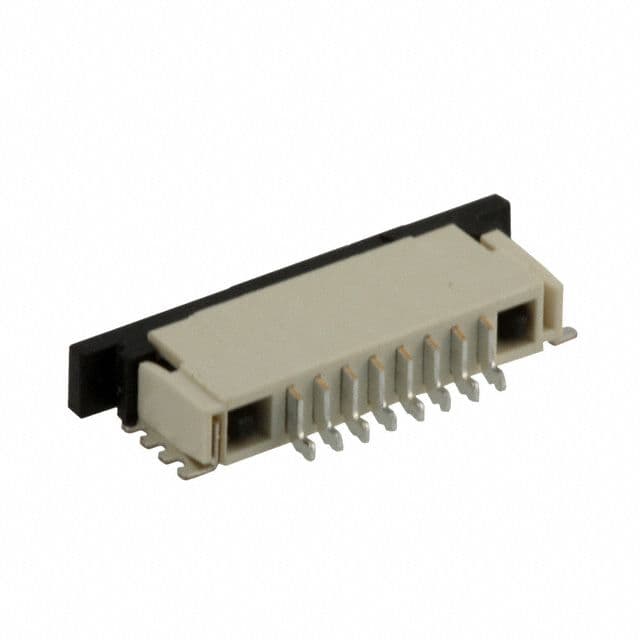

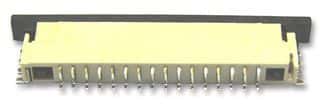

8 Pos FPC Connector, 1mm Pitch, Right Angle, SMD, 1A, 200V

Right angle, surface mount Flexible Flat Cable/Flexible Printed Circuit connector with 8 positions and 8 circuits. Features a 1mm pitch, bottom contact location, and a 1A contact current rating. Constructed with a thermoplastic housing and bronze contacts with tin plating. Rated for 200V AC maximum operating voltage and operates within a temperature range of -40°C to 85°C.

Voltage Rating200V

MountingSurface Mount

Quick Jump:

Technical Specifications

TE Connectivity 84952-8 technical specifications.

General

Actuator Color	Black
Actuator Material	Nylon, Glass, Polyamide
Body Plating	Tin
Circuit Application	Signal
Color	Natural
Connector System	Flex-to-Board
Contact Current Rating	1A
Contact Location	Bottom
Contact Material	Bronze
Contact Plating	Tin, Bright
Depth	6.54mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Female
Height	2.56mm
Housing Color	Natural
Lead Free	Lead Free
Lead Pitch	1mm
Length	0.6268inch
Material	Thermoplastic
Mating Alignment	Yes (With)
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Voltage Rating (AC)	200V
Mount	Surface Mount
Number of Contacts	8
Number of Positions	8
Number of Rows	1
Operating Supply Voltage	200V
Orientation	Right Angle
Package Quantity	1500
Packaging	Tape and Reel
PCB Mount Alignment	No (Without)
PCB Mount Retention	With
PCB Mounting Orientation	Right Angle
Pin Diameter	0.2mm
Pitch	0.039inch
Plating	Tin
Plating Thickness	2um
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Sealable	No (Without)
Shielding	Unshielded
Shrouded	Yes (With)
Termination	SMD/SMT
Voltage Rating	200V
Width	0.2575inch
Wire/Cable Type	Flat Flex
