4-position, 1mm pitch flexible flat cable (FFC) / flexible printed circuit (FPC) connector for board-to-flex applications. Features a right-angle surface mount termination with a ZIF (Zero Insertion Force) actuator. Constructed with a thermoplastic housing and bronze contacts with tin plating, rated for 1A current and 200V operating voltage. Operating temperature range from -40°C to 85°C.
Voltage Rating200V
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 84953-4 technical specifications.
General
Actuator Color
Black
Actuator Material
Nylon, Glass, Polyamide
Body Plating
Tin
Circuit Application
Signal
Color
Natural
Connector System
Flex-to-Board
Contact Current Rating
1A
Contact Location
Top
Contact Material
Bronze
Contact Plating
Tin, Bright
Contact Type
Socket
Depth
5.4mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Height
2.56mm
Housing Color
Natural
Lead Free
Lead Free
Lead Pitch
1mm
Length
11.92mm
Material
Thermoplastic
Mating Alignment
Yes (With)
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Contacts
4
Number of Positions
4
Number of Rows
1
Operating Supply Voltage
200V
Orientation
Right Angle
Package Quantity
1500
Packaging
Tape and Reel
PCB Mount Alignment
No (Without)
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
Pin Diameter
0.2mm
Pitch
0.039inch
Plating
Tin
Plating Thickness
2um
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Shielding
Unshielded
Shrouded
Yes (With)
Termination
SMD/SMT
Voltage Rating
200V
Width
0.2575inch
Wire/Cable Type
Flat Flex
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 84953-4 Datasheet
Download the complete datasheet for TE Connectivity 84953-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

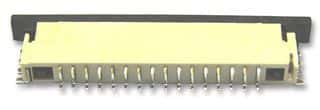

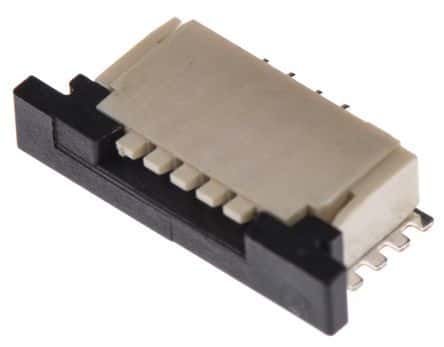

Product Images
