84984-8

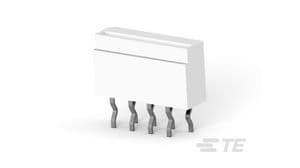

1mm FFC DIP V ASSY 8P NAT(TB) is a flex-to-board connector featuring a straight, vertical PCB mounting orientation with through-hole termination. This female header offers 8 positions and 8 contacts made of bronze with tin plating, rated for 1A current and 125V operating voltage. The thermoplastic housing is white with a natural color body plating, and the component boasts a 1mm lead pitch and 0.039-inch pitch. It includes mating alignment and PCB mount alignment features, with a UL94 V-0 flammability rating and a maximum operating temperature of 185°C.
