Female signal terminal for discrete wire applications. Features a 3A current rating and 250V voltage rating. Designed for straight, cable mounting with a Crimp termination. Accommodates wire gauges from 24AWG to 20AWG, with an insulation diameter of 1.75mm. Constructed with tin-plated copper contacts and operates within a temperature range of -65°C to 105°C. RoHS compliant and CSA approved.
Voltage Rating250V
Current Rating3A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 87046-4 technical specifications.
General
Approvals
CSA
Contact Current Rating
3A
Contact Gender
Female
Contact Material
Copper
Contact Plating
Tin
Contact Type
Signal
Current Rating
3A
Depth
2.41mm
ELV
Compliant
Gender
Female
Height
2.03mm
Insulation Diameter
1.75mm
Lead Free
Lead Free
Length
12.24mm
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Mount
Cable
Orientation
Straight
Package Quantity
1000
Packaging
Loose Piece
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
AMPMODU MOD IV
Shielding
Unshielded
Termination
Crimp
Voltage Rating
250V
Voltage Rating (AC)
250V
Wire Gauge (Max)
20AWG
Wire Gauge (Min)
24AWG
Wire/Cable Gauge
20AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 87046-4 Datasheet
Download the complete datasheet for TE Connectivity 87046-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

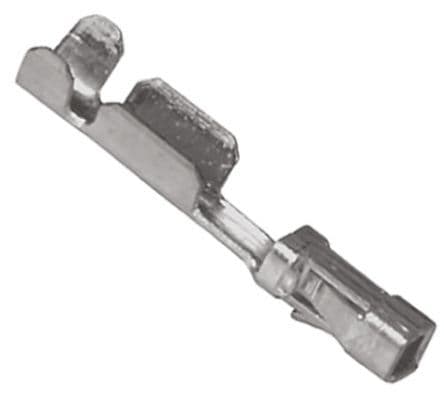

Product Images
