This straight, male pin header connector features 2 positions and 2 contacts with a 2.54mm pitch. It offers a 3A current rating, gold-plated bronze and copper alloy contacts with a mating length of 8.08mm, and a 0.125-inch contact post length. The black thermoplastic housing is UL94 V-0 rated and operates between -65°C and 105°C. Designed for through-hole mounting, this lead-free connector is RoHS compliant.
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 87224-2 technical specifications.
General
Approvals
CSA
Board Standoff
No (Without)
Contact Current Rating
3A
Contact Finish - Mating
GOLD
Contact Gender
Male
Contact Material
Bronze, Copper Alloy
Contact Mating Length
8.08mm
Contact Plating
Gold
Contact Post Length
0.125inch
Contact Protection
No (Without)
Contact Shape
Square
Contact Style
Pin
Contact Type
Male Pin
Current Rating
3A
Depth
2.54mm
Flammability Rating
UL94 V-0
Gasket
No (Without)
Gender
Male
High Speed Serial Data Connector
No
High Temperature Housing
No
Housing Color
Black
Insulation Color
Black
Insulation Material
Thermoplastic
Keyed
No
Lead Free
Lead Free
Lead Length
3.175mm
Length
4.67mm
Mating Alignment
No (Without)
Mating Connector Lock
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Mount
Through Hole
Mounting Ears
No (Without)
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Orientation
Straight
Package Quantity
500
Packaging
Carton
Panel Mount Retention
No (Without)
PCB Mount Retention
Without
PCB Thickness
1.4mm
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
2.54mm
Selectively Loaded
No (Without)
Series
AMPMODU MOD II
Stabilizers
No (Without)
Strain Relief
No (Without)
Termination
Through Hole
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 87224-2 Datasheet
Download the complete datasheet for TE Connectivity 87224-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

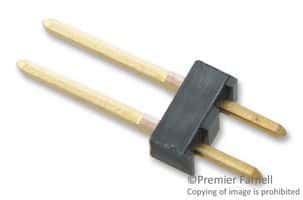

Product Images
