8-position, 2-row straight receptacle header with a 2.54mm pitch. Features a 3A contact current rating and copper contact material. Operates within a -65°C to 105°C temperature range and supports up to 250V AC. Housing is black, UL94 V-0 flammability rated, and the component is RoHS compliant. Termination is Crimp, with mounting options for free hanging, surface mount, and cable.
MountingFree Hanging, Surface Mount, Cable
Quick Jump:
Technical Specifications
TE Connectivity 87456-3 technical specifications.
General
| Approvals | CSA |
| Color | Black |
| Contact Current Rating | 3A |
| Contact Material | Copper |
| Contact Type | Female Socket |
| Depth | 15.24mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Height | 6.1mm |
| Housing Color | Black |
| Lead Free | Not Applicable |
| Length | 0.41inch |
| Mating Alignment | No (Without) |
| Mating Connector Lock | No (Without) |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -65°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Free Hanging, Surface Mount, Cable |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | AMPMODU MOD IV |
| Strain Relief | No (Without) |
| Termination | Crimp |
| Voltage Rating (AC) | 250V |
| Width | 6.1mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 87456-3 Datasheet
Download the complete datasheet for TE Connectivity 87456-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

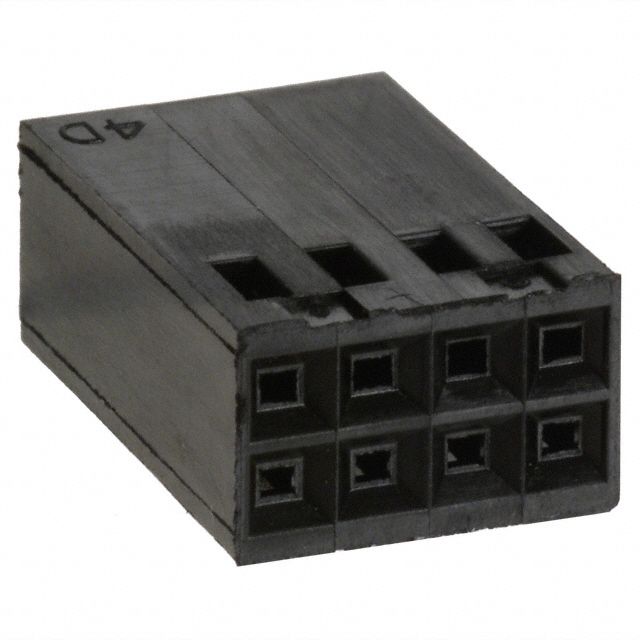

Product Images
