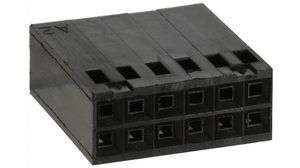

87456-8

12 Pos 2 Row 2.54mm Pitch Female Header, 3A, Gold, UL94 V-0

12-position, 2-row female socket header with 2.54mm pitch and 0.100 inch row spacing. Features a 3A current rating, 250V voltage rating, and gold-plated copper contacts. Straight orientation, black housing, and Crimp termination. Operating temperature range of -65°C to 105°C. RoHS compliant and UL94 V-0 flammability rated.

Voltage Rating250V

Current Rating3A

MountingFree Hanging, Cable, PCB

Quick Jump:

Technical Specifications

TE Connectivity 87456-8 technical specifications.

General

Approvals	CSA
Color	Black
Contact Current Rating	3A
Contact Material	Copper
Contact Plating	Gold
Contact Type	Female Socket
Current Rating	3A
Depth	15.24mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	6.1mm
Housing Color	Black
Lead Free	Lead Free
Length	0.61inch
Mating Alignment	No (Without)
Mating Connector Lock	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Max Voltage Rating (AC)	250V
Mount	Free Hanging, Cable, PCB
Number of Contacts	12
Number of Positions	12
Number of Rows	2
Orientation	Straight
Package Quantity	1
Packaging	Bulk
Pitch	2.54mm
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	0.1inch
Series	AMPMODU MOD IV
Strain Relief	No (Without)
Termination	Crimp
Voltage Rating	250V
Voltage Rating (AC)	250V
DC Rated Voltage	250V
Width	6.1mm
