General purpose barrier strip terminal block, featuring 6 circuits and 6 positions in a single row and single deck configuration. Rated for 30A and 600V AC, this straight-oriented component utilizes tin-plated copper alloy contacts and screw termination. Constructed with black thermoplastic insulation, it offers a wide operating temperature range from -40°C to 248°C and boasts a UL94 V-0 flammability rating. Designed for through-hole mounting with a 11.1mm pitch, it accommodates wire gauges from 10AWG to 18AWG.
Voltage600V
Voltage Rating600V
Current Rating30A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 8PCV-06-006 technical specifications.
General
Color
Black
Contact Material
Copper Alloy
Contact Plating
Tin
Current Rating
30A
ELV
Compliant
Flammability Rating
UL94 V-0
Height
0.77inch
Insulation Material
Thermoplastic
Length
68.5mm
Max Current Rating
30A
Max Operating Temperature
248°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
600V
Mount
Through Hole
Mounting Ears
No (Without)
Mounting Insert
No (Without)
Number of Circuits
6
Number of Contacts
6
Number of Levels
1
Number of Positions
6
Number of Rows
1
Number of Wire Entries
6
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Pitch
11.1mm
RoHS Compliant
Yes
Series
#8, Buchanan
Terminal Material
Copper Alloy
Termination
Screw
Voltage
600V
Voltage Rating
600V
Width
0.8inch
Wire Gauge (Max)
18AWG
Wire Gauge (Min)
10AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 8PCV-06-006 Datasheet
Download the complete datasheet for TE Connectivity 8PCV-06-006 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

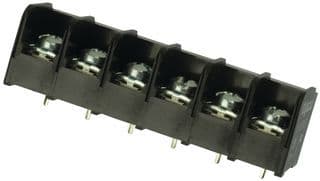

Product Images
